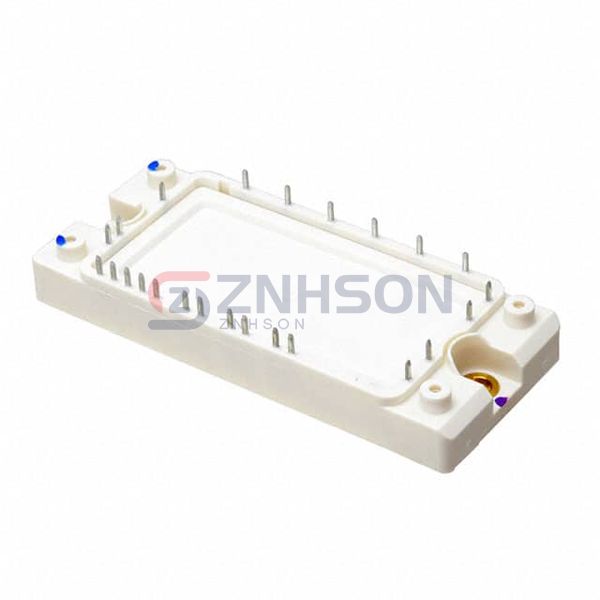

FP40R12KE3BOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 55A 210W
$0.00
Available to order
Reference Price (USD)
10+
$81.68700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the FP40R12KE3BOSA1 IGBT module by Infineon Technologies sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The FP40R12KE3BOSA1 finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Infineon Technologies continues to lead the IGBT module revolution with innovations like the FP40R12KE3BOSA1.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 55 A
- Power - Max: 210 W
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 2.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Infineon Technologies
BSM150GB60DLCHOSA1
Infineon Technologies
FZ800R33KL2CB5NOSA1
Microchip Technology
APTGF75DSK120TG
Infineon Technologies
FS400R12A2T4IBPSA1
Infineon Technologies
FS400R12A2T4BOSA1
Vishay General Semiconductor - Diodes Division
VS-GA200SA60UP
Powerex Inc.
CM300DY-12H
IXYS
IXSN35N120AU1
Littelfuse Inc.

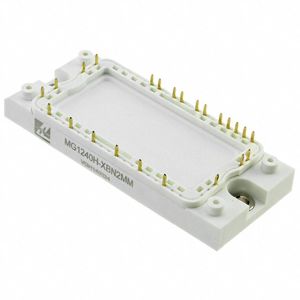

MG1240H-XBN2MM
