VS-CPV362M4FPBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
IGBT MODULE 600V 8.8A 23W IMS-2
$0.00
Available to order
Reference Price (USD)
160+
$40.02000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the VS-CPV362M4FPBF IGBT module by Vishay General Semiconductor - Diodes Division sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The VS-CPV362M4FPBF finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Vishay General Semiconductor - Diodes Division continues to lead the IGBT module revolution with innovations like the VS-CPV362M4FPBF.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 8.8 A
- Power - Max: 23 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 4.8A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 340 pF @ 30 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 19-SIP (13 Leads), IMS-2
- Supplier Device Package: IMS-2
Related Products
Littelfuse Inc.

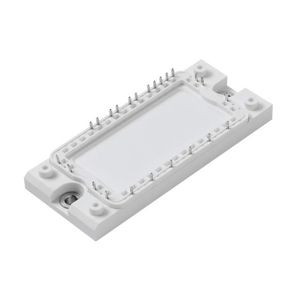

MG1225H-XN2MM
