FQH90N15
onsemi
onsemi

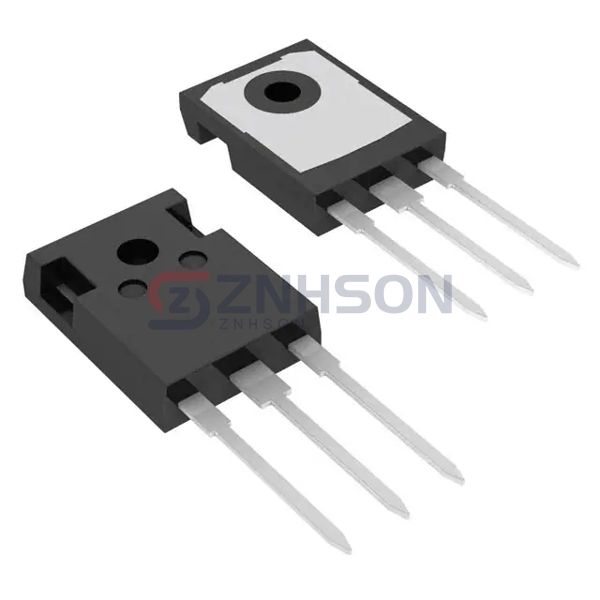

MOSFET N-CH 150V 90A TO247-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FQH90N15 single MOSFET from onsemi is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the FQH90N15 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 18mOhm @ 45A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 285 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 8700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 375W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
