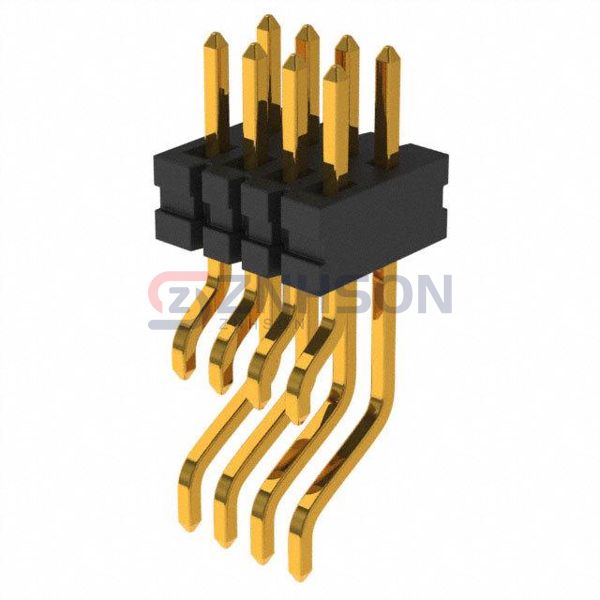

FTE-104-01-G-DH

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN HEADER SMD R/A 8POS 0.8MM

Datasheet:

FTE-104-01-G-DH Datasheet

$2.06

Available to order

Reference Price (USD)

$2.06000

10+

$1.86900

25+

$1.75400

50+

$1.67780

100+

$1.60160

250+

$1.44908

500+

$1.33468

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The FTE-104-01-G-DH by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the FTE-104-01-G-DH supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.031" (0.80mm)
Number of Positions: 8
Number of Rows: 2
Row Spacing - Mating: 0.047" (1.20mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.075" (1.90mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.120" (3.05mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.7A per Contact
Voltage Rating: -
