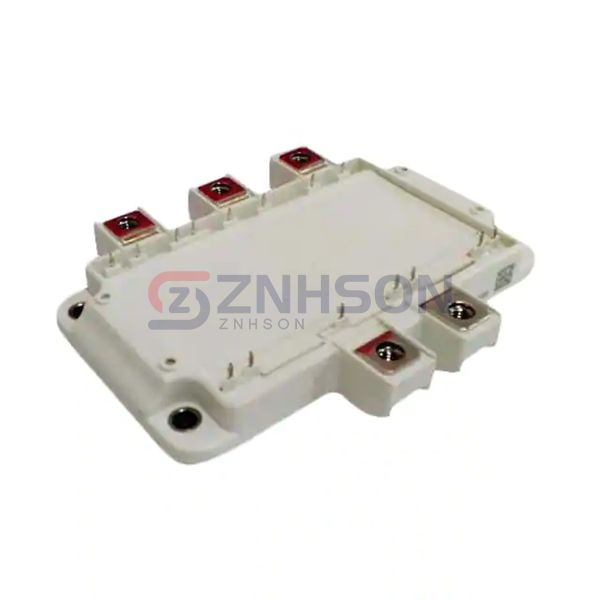

GSID300A125S5C1
SemiQ
SemiQ
IGBT MOD 1250V 600A 2500W
$0.00
Available to order
Reference Price (USD)
1+
$356.28000
10+
$339.08000
25+
$326.79440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
SemiQ's GSID300A125S5C1 represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the GSID300A125S5C1 in industrial servo drives or medium-voltage frequency converters. Trust SemiQ's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: 3 Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1250 V
- Current - Collector (Ic) (Max): 600 A
- Power - Max: 2500 W
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 300A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 30.8 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
