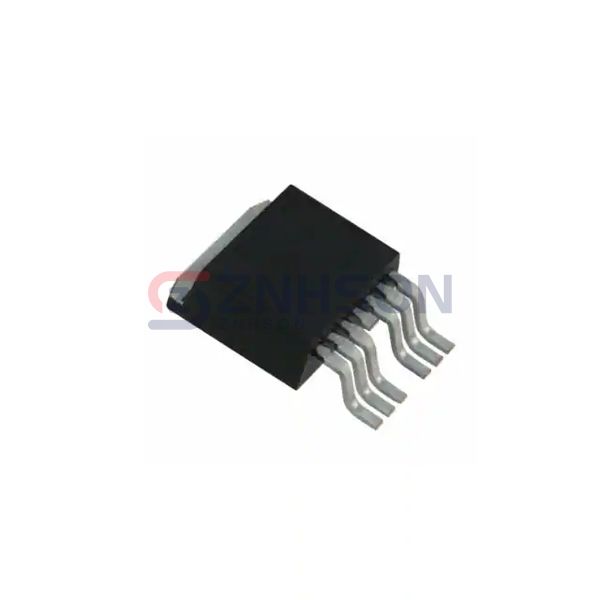

IPB240N03S4LR9ATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 30V 240A TO263-7
$2.62
Available to order
Reference Price (USD)
1,000+
$1.63610
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IPB240N03S4LR9ATMA1 by Infineon Technologies, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IPB240N03S4LR9ATMA1 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 240A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.92mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 180µA
- Gate Charge (Qg) (Max) @ Vgs: 300 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 20300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 231W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TO263-7-3
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
