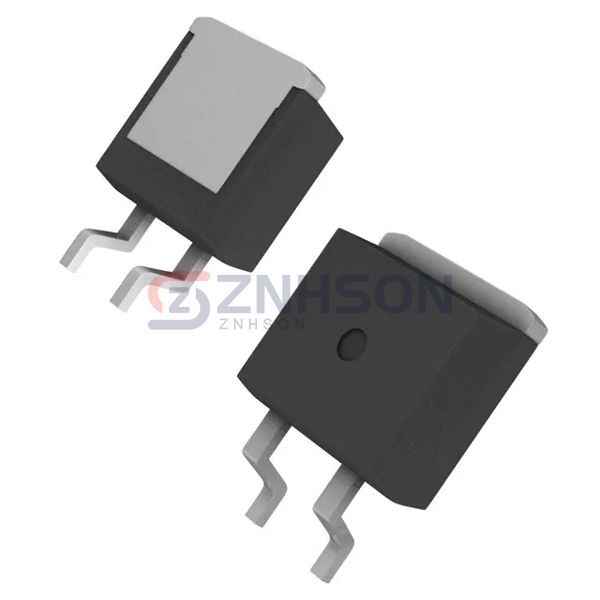

IXGA20N120
IXYS
IXYS
IGBT 1200V 40A 150W TO263
$0.00
Available to order
Reference Price (USD)
50+
$5.67000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGA20N120 by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXGA20N120 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 150 W
- Switching Energy: 6.5mJ (off)
- Input Type: Standard
- Gate Charge: 63 nC
- Td (on/off) @ 25°C: 28ns/400ns
- Test Condition: 800V, 20A, 47Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
