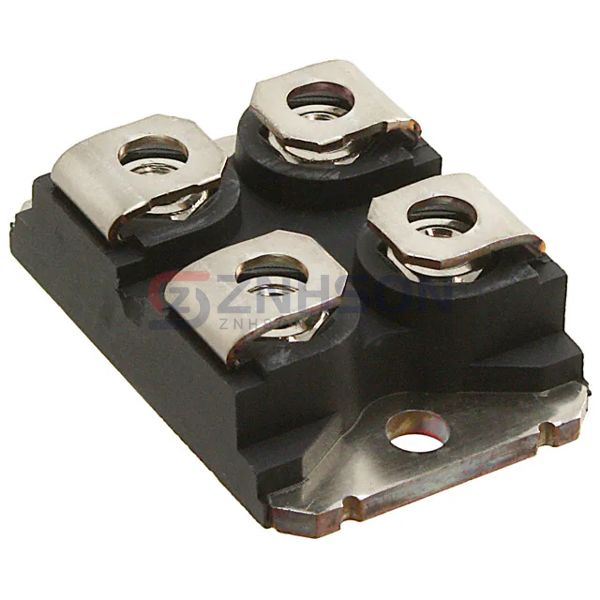

IXGN200N60B
IXYS
IXYS
IGBT MOD 600V 200A 600W SOT227B
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGN200N60B from IXYS exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the IXGN200N60B in megawatt-level wind turbine converters. With IXYS's proven track record, the IXGN200N60B represents the future of power semiconductor modules.
Specifications
- Product Status: Obsolete
- IGBT Type: PT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 600 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 120A
- Current - Collector Cutoff (Max): 200 µA
- Input Capacitance (Cies) @ Vce: 11 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227B
