IXGT20N100
IXYS
IXYS
IGBT 1000V 40A 150W TO268
$0.00
Available to order
Reference Price (USD)
30+
$9.57867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGT20N100 by IXYS is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the IXGT20N100 delivers robust performance. IXYS's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate IXGT20N100 into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1000 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 20A
- Power - Max: 150 W
- Switching Energy: 3.5mJ (off)
- Input Type: Standard
- Gate Charge: 73 nC
- Td (on/off) @ 25°C: 30ns/350ns
- Test Condition: 800V, 20A, 47Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268AA
Related Products
IXYS
IXGT20N60BD1
Fairchild Semiconductor
ISL9V2040P3
Infineon Technologies

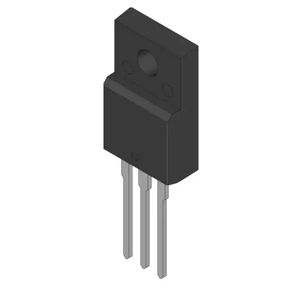

IRG4IBC30KDPBF-INF
Infineon Technologies
IRG4BC40U
Infineon Technologies
IRG6I320UPBF
Infineon Technologies

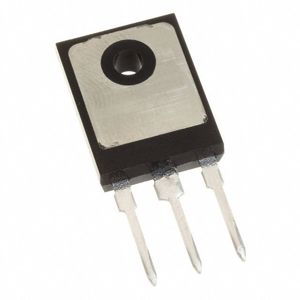

IGW40N65F5AXKSA1
Toshiba Semiconductor and Storage
GT10J312(Q)
IXYS
IXGT40N60C2D1
onsemi

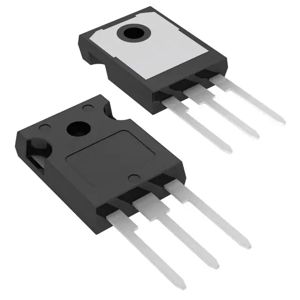

NGTB40N120SWG
