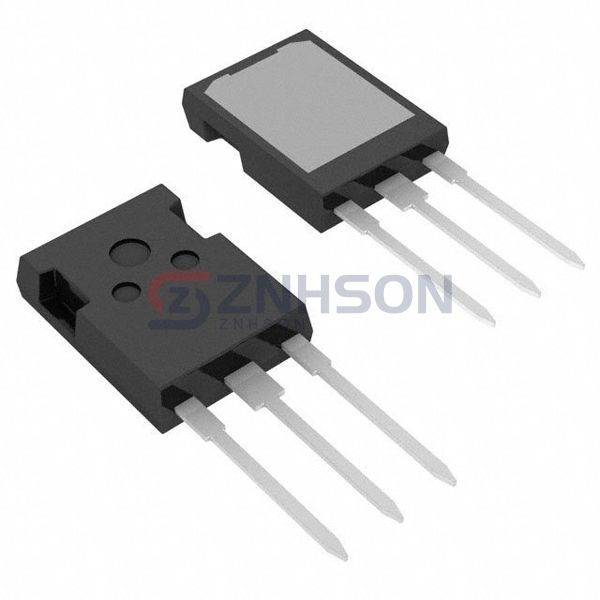

IXGX120N60B3
IXYS
IXYS
IGBT 600V 280A 780W PLUS247
$0.00
Available to order
Reference Price (USD)
30+
$12.62633
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IXGX120N60B3 Single IGBT transistor by IXYS, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IXGX120N60B3 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IXGX120N60B3 for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 280 A
- Current - Collector Pulsed (Icm): 600 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 100A
- Power - Max: 780 W
- Switching Energy: 2.9mJ (on), 3.5mJ (off)
- Input Type: Standard
- Gate Charge: 465 nC
- Td (on/off) @ 25°C: 40ns/227ns
- Test Condition: 480V, 100A, 2Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
