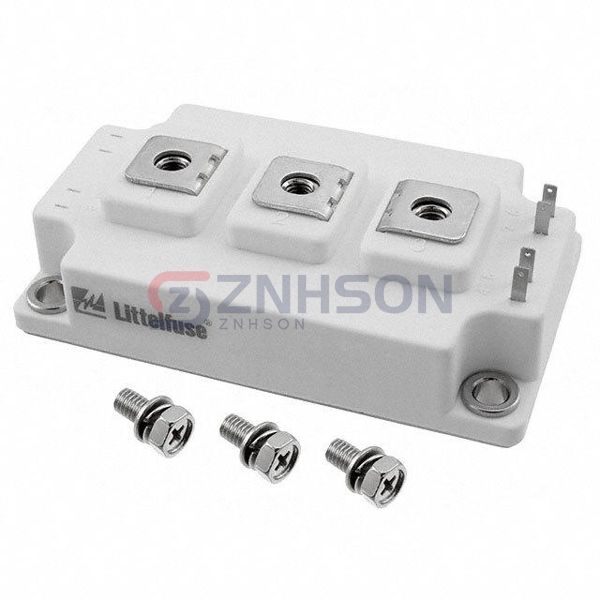

MG12150D-BA1MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 210A 1100W D3
$0.00
Available to order
Reference Price (USD)
60+
$114.17633
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12150D-BA1MM from Littelfuse Inc. is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the MG12150D-BA1MM is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Littelfuse Inc.'s advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 210 A
- Power - Max: 1100 W
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 150A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 11 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D3
Related Products
Infineon Technologies
FS400R07A1E3BOSA1

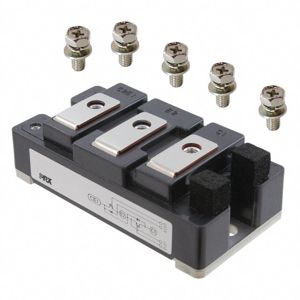

Powerex Inc.
CM150DUS-12F

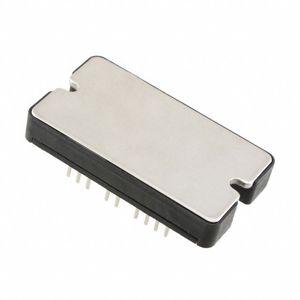

Microsemi Corporation
APTGF90DH60T3G
Microsemi Corporation
APT75GN120J

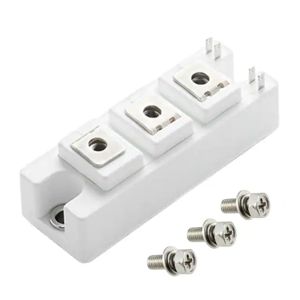

Littelfuse Inc.
MG12100S-BN2MM

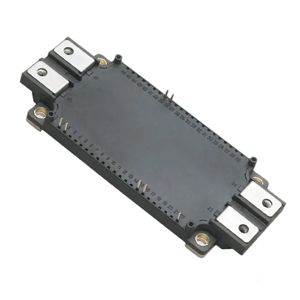

Powerex Inc.
CM400DX-12A

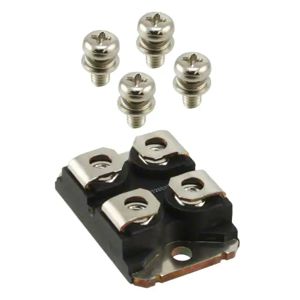

IXYS
IXGN80N60A2D1

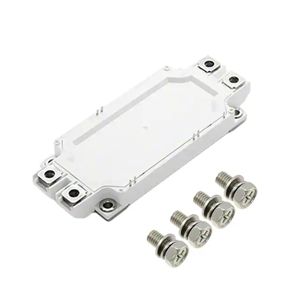

Littelfuse Inc.
MG06600WB-BN4MM

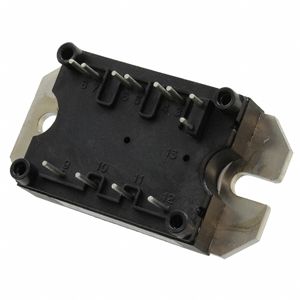

Vishay General Semiconductor - Diodes Division
VS-50MT060WHTAPBF

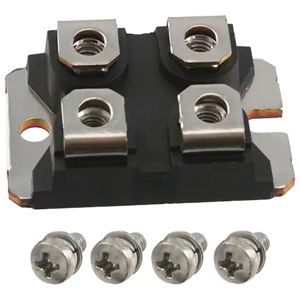

STMicroelectronics
