NTHD3100CT3G

onsemi

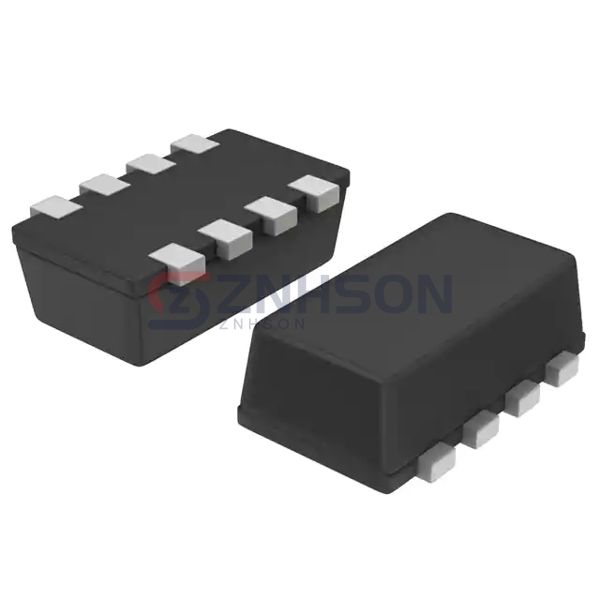

NTHD3100CT3G Preview
onsemi
MOSFET N/P-CH 20V CHIPFET
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Obsolete
  • FET Type: N and P-Channel
  • FET Feature: Logic Level Gate
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 2.9A, 3.2A
  • Rds On (Max) @ Id, Vgs: 80mOhm @ 2.9A, 4.5V
  • Vgs(th) (Max) @ Id: 1.2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 2.3nC @ 4.5V
  • Input Capacitance (Ciss) (Max) @ Vds: 165pF @ 10V
  • Power - Max: 1.1W
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD, Flat Lead
  • Supplier Device Package: ChipFET™
