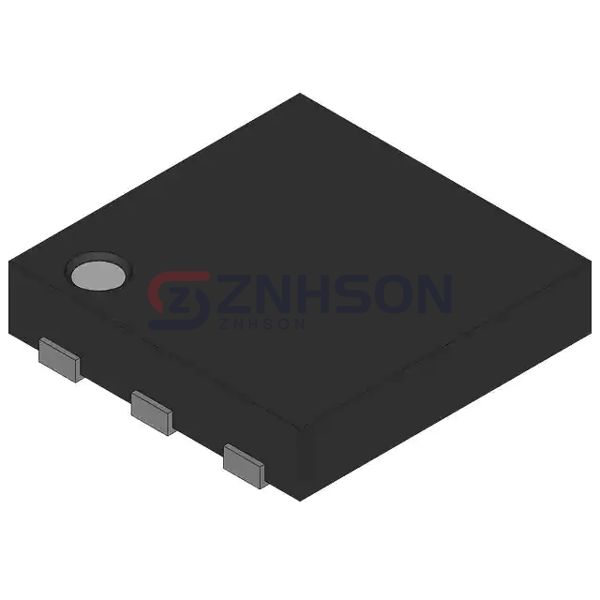

NTLJS3180PZTBG
onsemi

onsemi
SMALL SIGNAL FIELD-EFFECT TRANSI
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
500+
$0.1881
1000+
$0.1862
1500+
$0.1843
2000+
$0.1824
2500+
$0.1805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NTLJS3180PZTBG from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the NTLJS3180PZTBG ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 38mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19.5 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1100 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WDFN (2x2)
- Package / Case: 6-WDFN Exposed Pad
