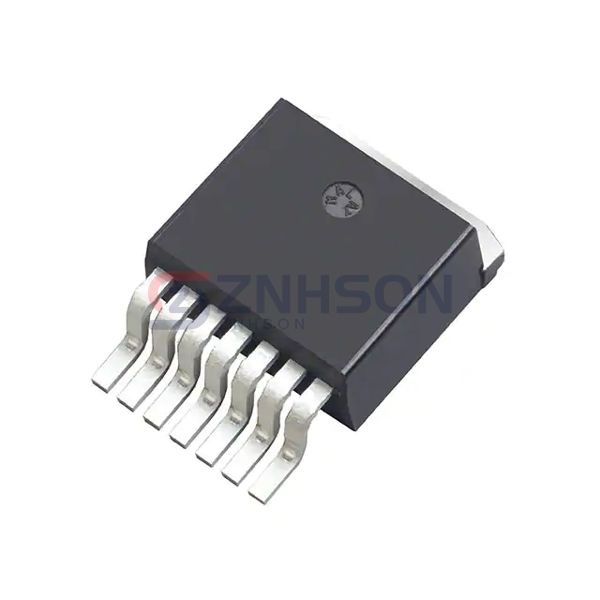

NVBG080N120SC1
onsemi
onsemi
SICFET N-CH 1200V 30A D2PAK-7
$13.77
Available to order
Reference Price (USD)
1+
$13.77000
500+
$13.6323
1000+
$13.4946
1500+
$13.3569
2000+
$13.2192
2500+
$13.0815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVBG080N120SC1 by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NVBG080N120SC1 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 20A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 5mA
- Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 1154 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 179W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
