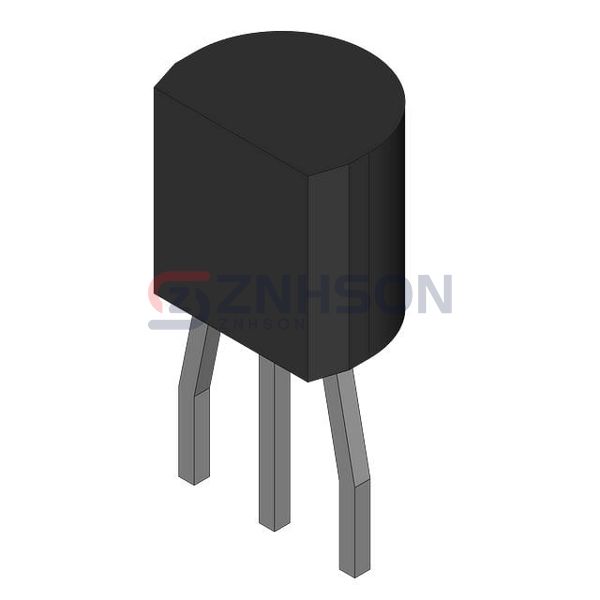

PN3563
Fairchild Semiconductor
Fairchild Semiconductor
RF SMALL SIGNAL TRANSISTOR
$0.04
Available to order
Reference Price (USD)
1+
$0.04000
500+
$0.0396
1000+
$0.0392
1500+
$0.0388
2000+
$0.0384
2500+
$0.038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PN3563, a premium RF Bipolar Junction Transistor (BJT) by Fairchild Semiconductor, part of the Discrete Semiconductor Products lineup. This transistor is engineered for high-frequency applications, delivering outstanding performance in RF amplification and switching. Its advanced design ensures minimal signal loss and high efficiency, making it perfect for use in mobile communication, broadcast equipment, and satellite systems. The PN3563 boasts features like high power gain, low intermodulation distortion, and superior thermal management. Whether you're designing RF amplifiers, oscillators, or mixers, this transistor provides the reliability and performance you need. Choose Fairchild Semiconductor for cutting-edge RF BJT solutions.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 15V
- Frequency - Transition: 1.5GHz
- Noise Figure (dB Typ @ f): -
- Gain: 14dB ~ 26dB
- Power - Max: 350mW
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 8mA, 10V
- Current - Collector (Ic) (Max): 50mA
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
