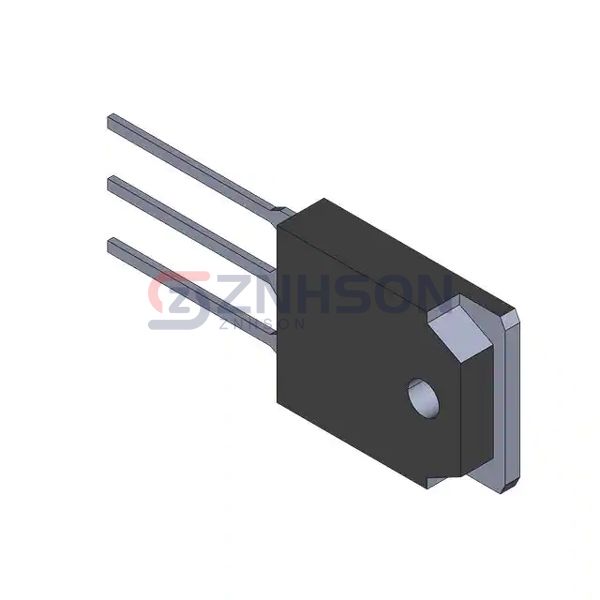

SGH20N120RUFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 32A, 1200V, N-CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGH20N120RUFDTU by Fairchild Semiconductor is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the SGH20N120RUFDTU delivers robust performance. Fairchild Semiconductor's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate SGH20N120RUFDTU into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 32 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 20A
- Power - Max: 230 W
- Switching Energy: 1.3mJ (on), 1.3mJ (off)
- Input Type: Standard
- Gate Charge: 140 nC
- Td (on/off) @ 25°C: 30ns/70ns
- Test Condition: 600V, 20A, 15Ohm, 15V
- Reverse Recovery Time (trr): 80 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
