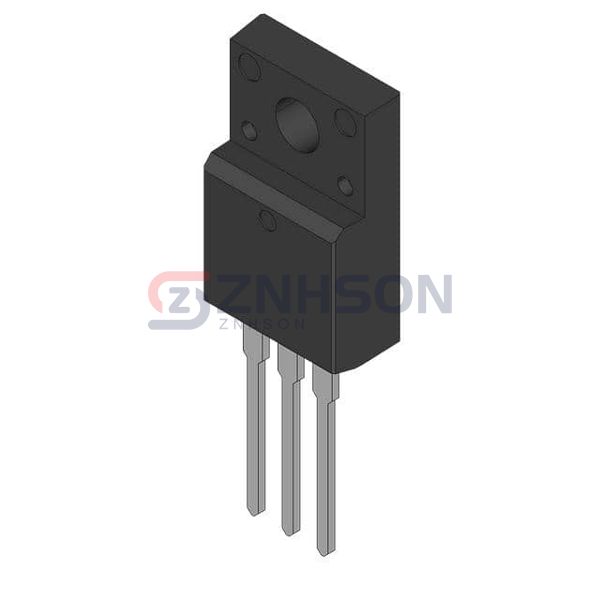

SGS13N60UFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 13A, 600V, N-CHANNEL
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGS13N60UFDTU by Fairchild Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Fairchild Semiconductor's reputation for quality, the SGS13N60UFDTU is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 13 A
- Current - Collector Pulsed (Icm): 52 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 6.5A
- Power - Max: 45 W
- Switching Energy: 85µJ (on), 95µJ (off)
- Input Type: Standard
- Gate Charge: 25 nC
- Td (on/off) @ 25°C: 20ns/70ns
- Test Condition: 300V, 6.5A, 50Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3
