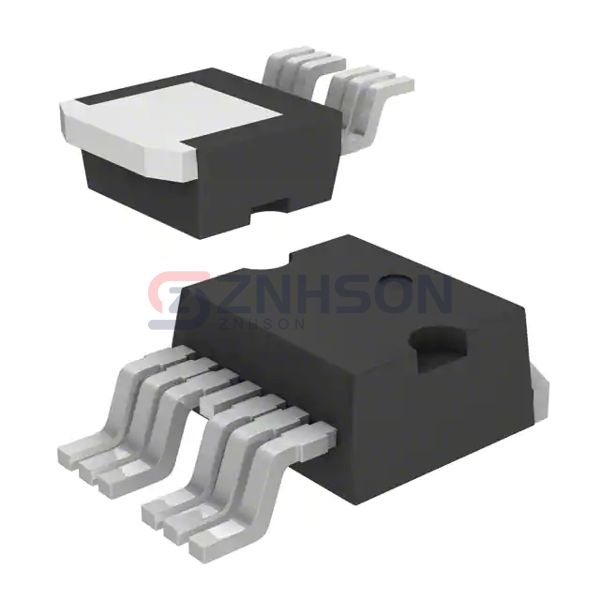

STH272N6F7-6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 60V 180A H2PAK-6
$2.48
Available to order
Reference Price (USD)
1,000+
$2.45660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STH272N6F7-6AG from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STH272N6F7-6AG ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 180A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 90A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 170 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 11000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 333W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2PAK-6
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
