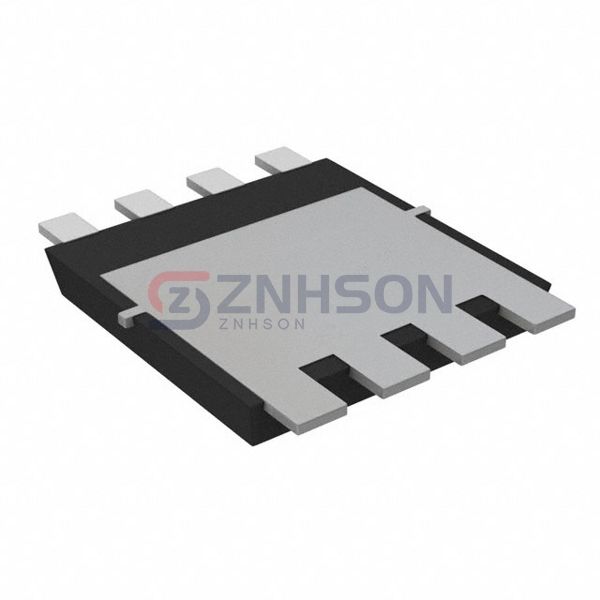

TPW1R306PL,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 260A 8DSOP
$2.92
Available to order
Reference Price (USD)
5,000+
$1.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPW1R306PL,L1Q by Toshiba Semiconductor and Storage is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TPW1R306PL,L1Q is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 260A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.29mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 91 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8100 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 960mW (Ta), 170W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DSOP Advance
- Package / Case: 8-PowerWDFN
