UGB18ACT-E3/45
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ARRAY GP 50V 18A TO263AB
$0.84
Available to order
Reference Price (USD)
1,000+
$0.85193
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UGB18ACT-E3/45 rectifier array from Vishay General Semiconductor - Diodes Division redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Vishay General Semiconductor - Diodes Division's precision manufacturing ensures each UGB18ACT-E3/45 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50 V
- Current - Average Rectified (Io) (per Diode): 18A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 9 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 50 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AB (D²PAK)
Related Products
Panjit International Inc.
MBR25200CT_T0_00001
Diodes Incorporated
SDM40E20LA-7
IXYS
DPG60C200HB
NXP USA Inc.
BAV70S/DG/B3135
Panjit International Inc.
SBT30120LCT_T0_00001
Panjit International Inc.
BAT54SW-AU_R1_000A1
Fairchild Semiconductor
FEP16CT
SMC Diode Solutions
MBRD20150CT
SMC Diode Solutions

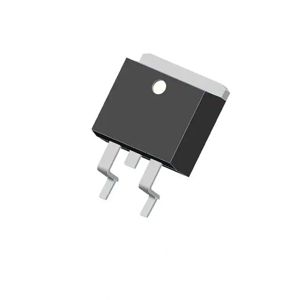

20CTQ045S
