ZXTN25020CFH
Diodes Incorporated
Diodes Incorporated
TRANS NPN 20V 4.5A SOT23-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZXTN25020CFH Bipolar Junction Transistor (BJT) by Diodes Incorporated is a versatile component in the discrete semiconductor products category. Designed for single-stage amplification and switching, this BJT transistor is widely used in medical devices, instrumentation, and power electronics. With its excellent thermal stability and low leakage current, the ZXTN25020CFH provides consistent performance in demanding applications. Choose Diodes Incorporated for cutting-edge semiconductor solutions that drive innovation and efficiency in your projects.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 4.5 A
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Vce Saturation (Max) @ Ib, Ic: 140mV @ 450mA, 4.5A
- Current - Collector Cutoff (Max): 50nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 10mA, 2V
- Power - Max: 1.25 W
- Frequency - Transition: 185MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
Related Products
Micro Commercial Co
KTA2014-GR-TP
Bourns Inc.
BD239D-S
onsemi
2N5551RL1
Rohm Semiconductor
MMST8598T146
Infineon Technologies
BC80825WE6327HTSA1
NXP USA Inc.

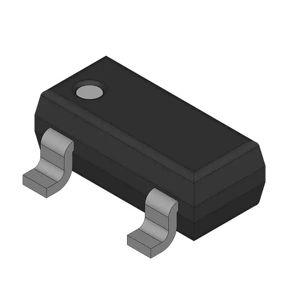

PMBT2222A/LF1215
Infineon Technologies

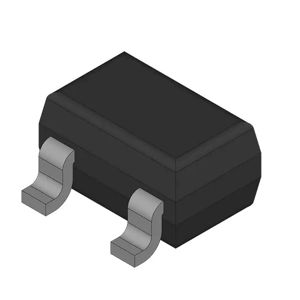

BC850CWE6327
Toshiba Semiconductor and Storage

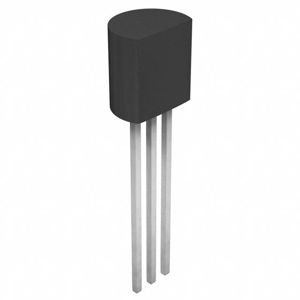

2SC2482(FJTN,F,M)
Rohm Semiconductor

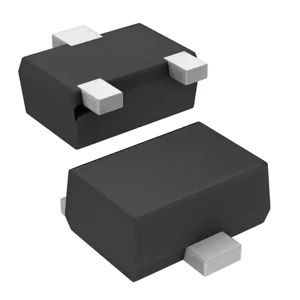

2SC4617EBTLS
