Linear - Analog Multipliers, Dividers
Linear - Analog Multipliers, Dividers: Precision Signal Processing Components
Definition & Functionality
Linear - Analog Multipliers and Dividers are specialized integrated circuits (ICs) designed to perform real-time mathematical operations (multiplication/division) on analog voltage signals. These components are essential for nonlinear signal processing in applications requiring precise amplitude modulation, frequency mixing, automatic gain control (AGC), or true RMS conversion. They operate within continuous voltage ranges, offering high accuracy and low temperature drift for critical analog systems.
Types & Variations
This product category includes:
1. Analog Multipliers Four-quadrant (handling positive/negative inputs) and two-quadrant designs, with bandwidths ranging from DC to GHz levels.
2. Analog Dividers Often paired with multipliers for ratio-based computations, featuring logarithmic or feedforward architectures.
3. Multiplier-Divider Hybrids Configurable ICs combining both functions, optimized for compact PCB layouts.
4. Programmable Gain ICs Integrate multipliers/dividers with op-amps for dynamic signal scaling.
Selection Guidance
When sourcing Linear Multipliers/Dividers, consider:
- Bandwidth & Linearity: Match IC bandwidth (>2x signal frequency) and linearity error (<0.1%) to application needs (e.g., RF vs. audio).
- Quadrant Operation: Four-quadrant multipliers (e.g., AD633) suit AC signal processing; two-quadrant types may suffice for unipolar inputs.
- Power Supply: Verify compatibility with system voltages (e.g., 15V industrial vs. +5V portable devices).
- Package & Integration: SOIC packages save space; some ICs embed auxiliary op-amps for reduced external components.
Why This Category Matters
These ICs enable complex analog computations without digital latency, making them irreplaceable in radar systems, analog computing, and instrumentation. Partner with trusted distributors (e.g., Analog Devices, Texas Instruments) to ensure authentic, datasheet-backed performance. For prototyping, evaluate evaluation modules (EVMs) to validate thermal and noise behavior.
Filter and sort
Categories

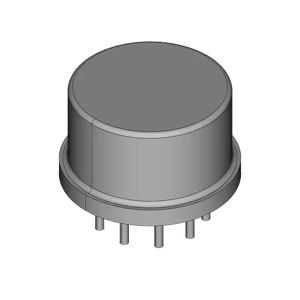

MPY100CM
ANALOG MULTIPLIER OR DIVIDER
AD835AN
IC MULTIPLIER 4-QUADRANT 8-DIP
AD533KD
MULTIPLIER, DIVIDER

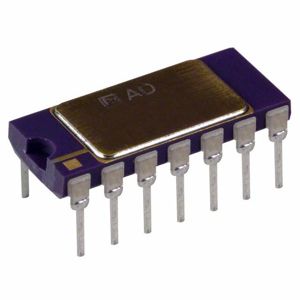

AD632BD
IC PREC MULTIPLIER MONO 14-CDIP
MPY634KU
IC WIDE BW PREC MULT 16-SOIC
ADSP-1012ASG/883B
12 X 12 CMOS MULTIPLIER
AD633JR
IC ANALOG MULTIPLIER 8-SOIC

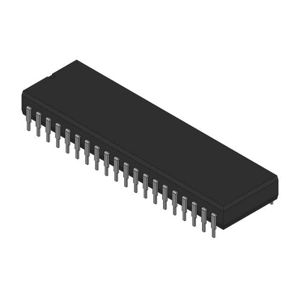

ADSP-1080AJN
8 X 8 CMOS MULTIPLIER
MPY634KP
IC ANALOG MULTIPLIER 14 DIP
CY22381SC-154
PROGRAMMABLE PLL CLOCK MULTIPLIE

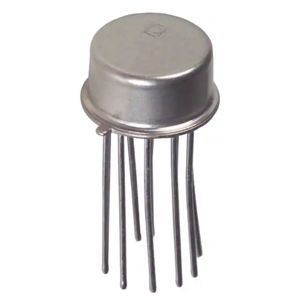

AD534TH/883B
IC MULTIPLIER/DIVIDER TO-100-10
AD533SD
MULTIPLIER, DIVIDER

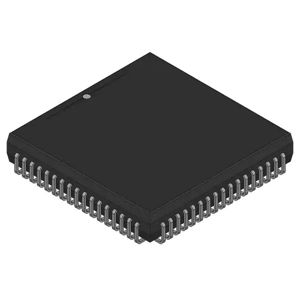

HMA510JC-55
16X16-BIT MULTIPLIER ACCUMULATOR
AD538AD
IC MULT/DIV REALTIME ACU 18-CDIP
AD633ARZ-R7
IC MULTIPLIER ANALOG 8-SOIC
MLT04GPZ
IC MULTIPLIER 4-QUADRANT 18-DIP
ICL8013AMTX
ANALOG MULTIPLIER

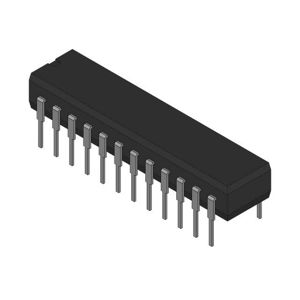

AM25S05DC
AM25S05 - MULTIPLIER, 4-BIT
HMU16GM-45/883
PARALLEL MULTIPLIER
CY22381SI-161
PROGRAMMABLE PLL CLOCK MULTIPLIE
