Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1020S-100
IC DELAY LN 256TAP 265NS 16SOIC

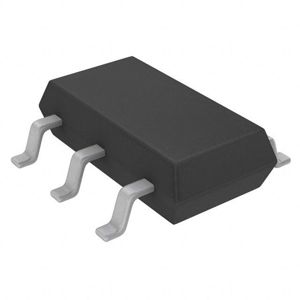

LTC6994IS6-2#WTRMPBF
TIMERBLOX: DELAY BLOCK/ DEBOUNCE

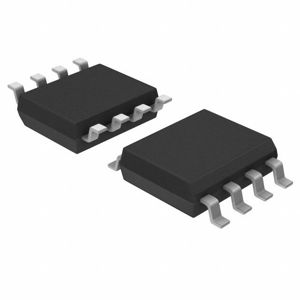

DS1035Z-20
DELAY LINE 35TAP 20NS 8-SOIC
DS1135Z-10+
IC DELAY LINE 10NS 8SOIC

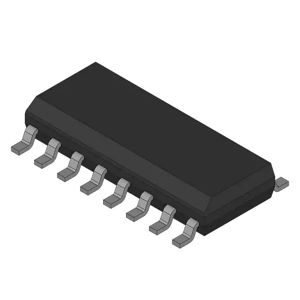

DS1000S-50
DS1000 5-TAP SILICON DELAY LINE
DS1000Z-30
DS1000 5-TAP SILICON DELAY LINE
DS1100LU-60+
IC DELAY LINE 5TAP 60NS 8UMAX

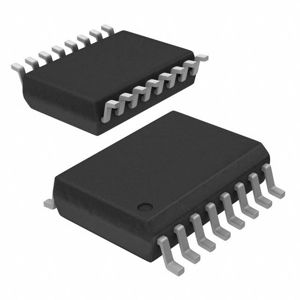

DS1010S-100
IC DELAY LINE 10TAP 100NS 16SOIC
DS1100LZ-45
IC DELAY LINE 5TAP 45NS 8SOIC
DS1007-1
DS1007 7-IN-1 SILICON DELAY LINE
DS1100Z-150+T
IC DELAY LINE 5TAP 150NS 8SOIC
DS1135M-30
3V 3-IN-1 HIGH-SPEEDDELAY LINE

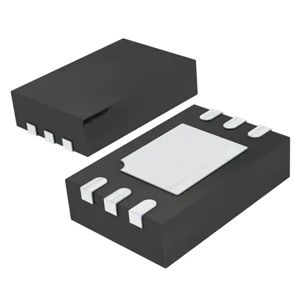

LTC6994HDCB-1#TRMPBF
IC DELAY BLOCK 8TAP PROG 6DFN
DS1040Z-B40
IC DELAY LINE 5TAP 40NS 8SOIC

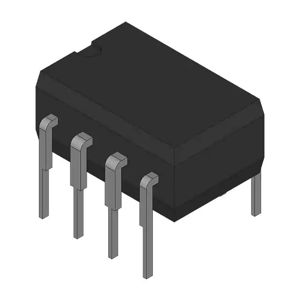

DS1013-M60
DS1013 3-IN-1 SILICON DELAY LINE
DS1005H-75/T&R
DS1005 5-TAP SILICON DELAY LINE

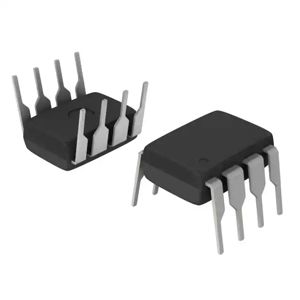

DS1013M-100+
IC DELAY LINE 100NS 8DIP
LTC6994CDCB-2#TRPBF
IC DELAY BLOCK 8TAP PROG 6DFN

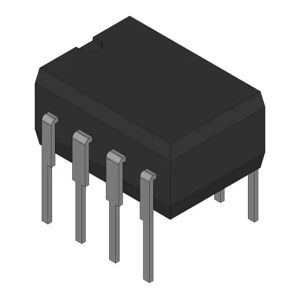

DS1035M-8
3-IN-1 HIGH-SPEED DELAY LINE
DS1013M-75+
IC DELAY LINE 75NS 8DIP
