Definition:
PMIC (Power Management Integrated Circuit) - OR Controllers and Ideal Diodes are specialized components designed to manage power distribution, redundancy, and efficiency in electronic systems. OR Controllers facilitate seamless power source switching between multiple inputs (e.g., primary and backup supplies), while Ideal Diodes emulate the behavior of traditional diodes with near-zero voltage drop, minimizing power loss and heat generation. These ICs are critical in applications requiring uninterrupted power delivery and optimized energy efficiency.
Product Types:
1. OR Controllers: Automatically select the highest available voltage from multiple inputs, ensuring continuous operation in failover scenarios. Common in servers, telecom, and automotive systems.
2. Ideal Diode Controllers: Replace physical diodes with MOSFET-based solutions, reducing forward voltage loss (e.g., from 0.7V to ~20mV). Ideal for battery-powered devices, solar panels, and hot-swap circuits.
3. Integrated ORing + Ideal Diode Solutions: Combine both functionalities for compact designs, such as in PoE (Power over Ethernet) systems or industrial backup modules.
Purchasing Recommendations:
- Voltage/Current Ratings: Match the IC s input/output specs (e.g., 12V/5A) to your system s requirements.
- Protection Features: Prioritize devices with built-in overvoltage (OVP), reverse-current (RCP), and thermal shutdown protection.
- Package & Integration: Opt for space-saving packages (e.g., DFN, QFN) for high-density PCBs, or modules with minimal external components.
- Industry Compliance: Verify certifications like AEC-Q100 for automotive or ISO 7637 for surge tolerance.
Why Choose This Category?
These ICs enhance system reliability, reduce energy waste, and simplify design complexity key for mission-critical power architectures. Browse our curated selection to find industry-leading solutions from Texas Instruments, Analog Devices, and Maxim Integrated.
Filter and sort
Categories
LT4351IMS#PBF
IC OR CTRLR N+1 10MSOP
LTC4357IMS8#TRPBF
IC OR CTRLR N+1 8MSOP
LM66100DCKT
IC OR CTRLR IDEAL DIODE SC70-6

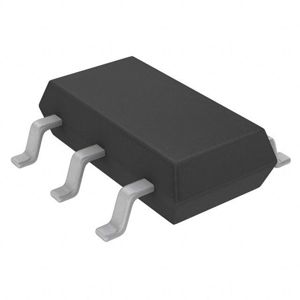

LTC4412HS6#TRMPBF
IC ORING DIODE CTLR TSOT23-6

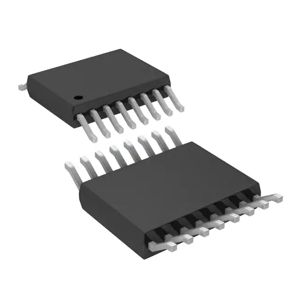

LTC4370CMS#PBF
IC OR CTRLR LOAD SHARE 16MSOP
LTC4420CMSE#PBF
IC SOURCE SELECTOR SWITCH 12MSOP
LTC4373IDD#PBF
LOW ICC IDEAL DIODE CONTROLLER W
MAX5944ESE+
IC OR CTRLR N+1 16SOIC
TPS2103DBVR
IC OR CTRLR SRC SELECT SOT23-5

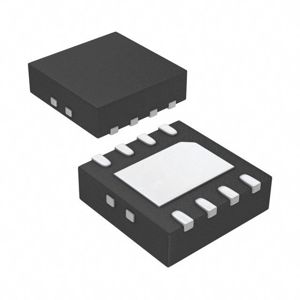

LTC4372HDD#TRPBF
LOW ICC IDEAL DIODE CONTROLLER W

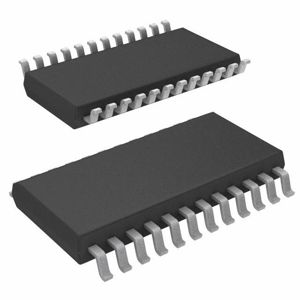

LTC4417HGN#PBF
IC OR CTRLR SRC SELECT 24SSOP
TPS2115PW
IC OR CTRLR SRC SELECT 8TSSOP

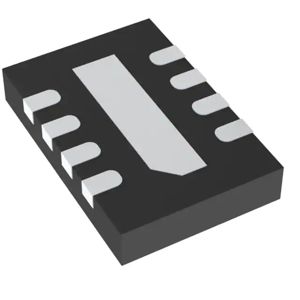

LTC4354IDDB#TRMPBF
IC OR CTRLR SRC SELECT 8DFN
LT4351IMS#TRPBF
IC OR CTRLR N+1 10MSOP

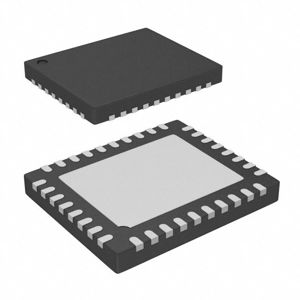

LTC4421HUHE#TRPBF
HP PRIORTIZED POWERPATH CONTROLL
LM74700QDBVTQ1
LOW IQ, IDEAL DIODE CONTROLLER
LM74610QDGKRQ1
IC SMART DIODE CTLR 8VSSOP

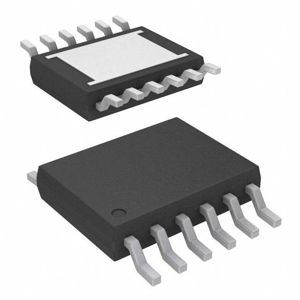

LTC4420IMSE#TRPBF
IC SOURCE SELECTOR SWITCH 12MSOP

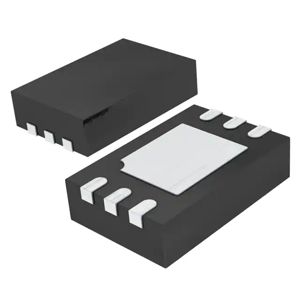

LTC4357IDCB#TRPBF
IC OR CTRLR N+1 6DFN

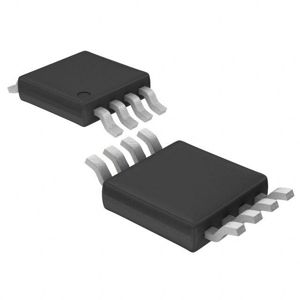

LTC4357MPMS8#PBF
IC OR CTRLR N+1 8MSOP
