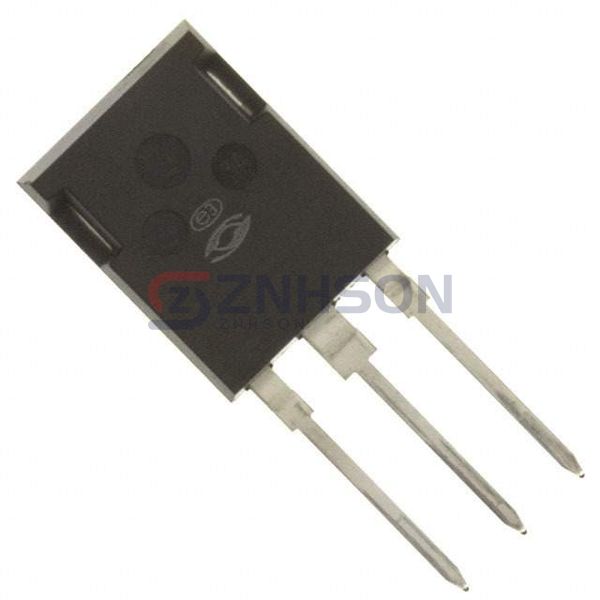

APT68GA60B2D40
Microchip Technology
Microchip Technology
IGBT 600V 121A 520W TO-247
$11.31
Available to order
Reference Price (USD)
47+
$10.60021
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT68GA60B2D40 by Microchip Technology is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Microchip Technology's reputation for quality, the APT68GA60B2D40 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 121 A
- Current - Collector Pulsed (Icm): 202 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 40A
- Power - Max: 520 W
- Switching Energy: 715µJ (on), 607µJ (off)
- Input Type: Standard
- Gate Charge: 198 nC
- Td (on/off) @ 25°C: 21ns/133ns
- Test Condition: 400V, 40A, 4.7Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
