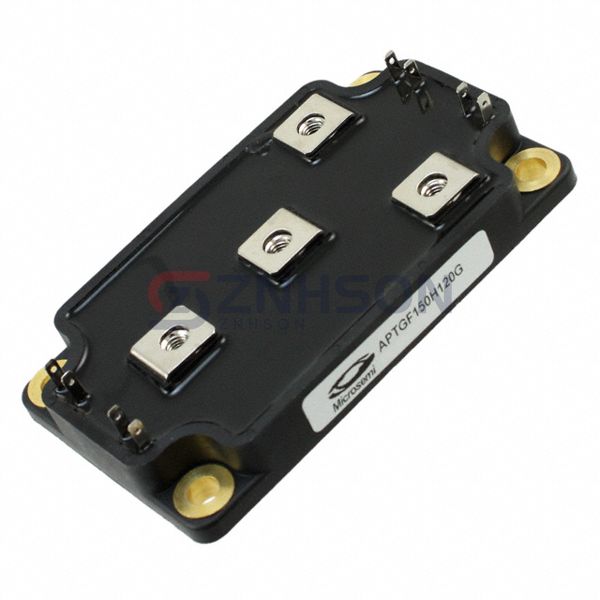

APTGF150H120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 200A 961W SP6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGF150H120G sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the APTGF150H120G in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Microchip Technology to deliver cutting-edge IGBT solutions with the APTGF150H120G power module.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 961 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
Related Products
Powerex Inc.
CM200DY-12H
SemiQ
GSID300A125S5C1
Vishay General Semiconductor - Diodes Division
VS-CPV364M4UPBF
Microchip Technology
APTGF50VDA60T3G
Vishay General Semiconductor - Diodes Division
VS-GB75DA120UP
Microchip Technology
APTGF25H120T1G
Infineon Technologies
F1235R12KT4GBOSA1
Infineon Technologies

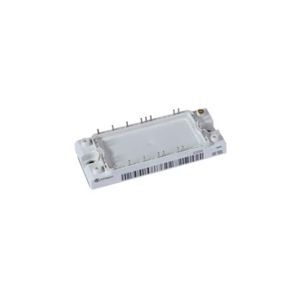

FP30R06KE3BOSA1
Infineon Technologies

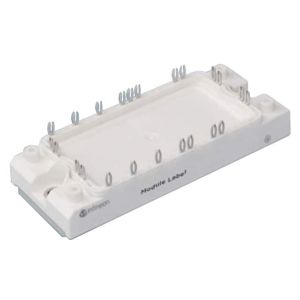

FS50R12U1T4BPSA1
