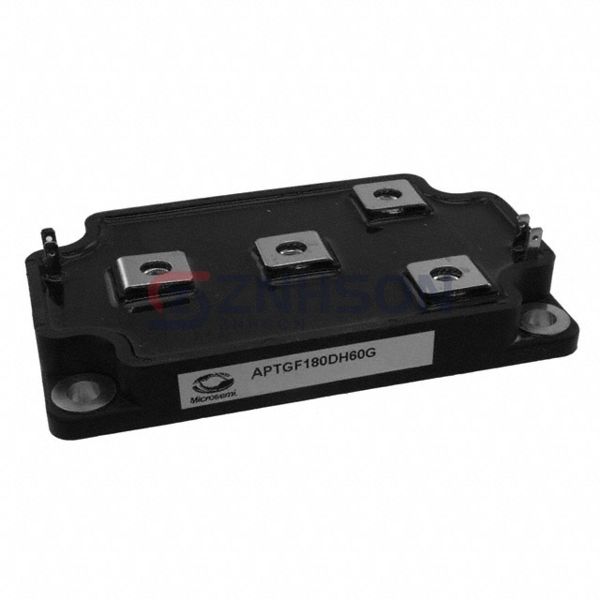

APTGF180DH60G
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 600V 220A 833W SP6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGF180DH60G from Microsemi Corporation is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the APTGF180DH60G is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Microsemi Corporation's advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Asymmetrical Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 220 A
- Power - Max: 833 W
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 180A
- Current - Collector Cutoff (Max): 300 µA
- Input Capacitance (Cies) @ Vce: 8.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
