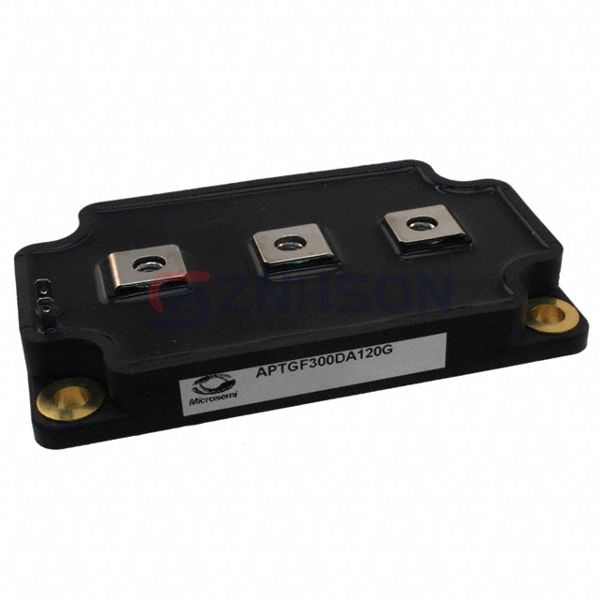

APTGF300DA120G
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 400A 1780W SP6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microsemi Corporation's APTGF300DA120G sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the APTGF300DA120G in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Microsemi Corporation to deliver cutting-edge IGBT solutions with the APTGF300DA120G power module.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 400 A
- Power - Max: 1780 W
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 300A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 21 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
