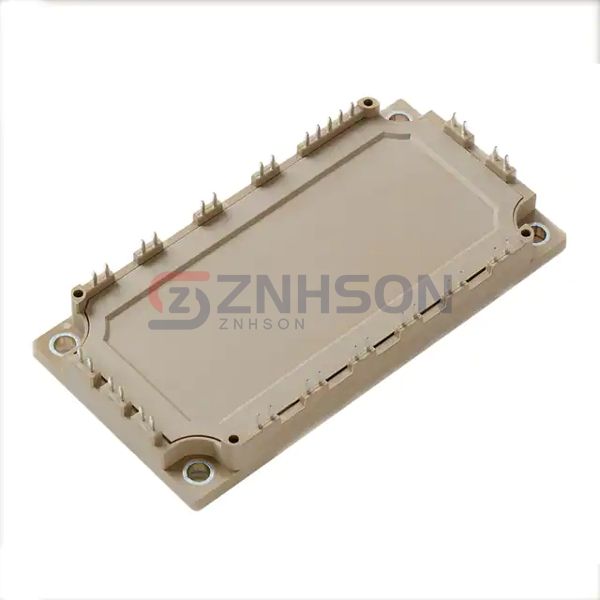

MG1275W-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 105A 368W
$0.00
Available to order
Reference Price (USD)
60+
$123.82000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Littelfuse Inc.'s MG1275W-XN2MM stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the MG1275W-XN2MM enables higher power density in MRI gradient amplifiers. Choose Littelfuse Inc. for IGBT modules that push performance boundaries.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 105 A
- Power - Max: 368 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 5.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
IXYS
IXGN100N160A
Infineon Technologies
F3L200R12N2H3B47BPSA1
Littelfuse Inc.
MG06400D-BN4MM
Infineon Technologies
FS6R06VE3B2BOMA1
Infineon Technologies
DDB6U134N16RRBOSA1
Powerex Inc.
CM400DY-12NF
Vishay General Semiconductor - Diodes Division
VS-GB90DA120U
Microsemi Corporation

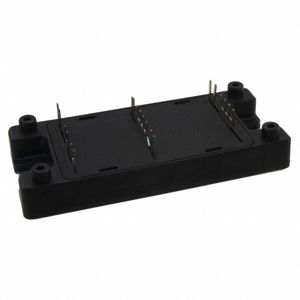

APTGF150DU120TG
Littelfuse Inc.

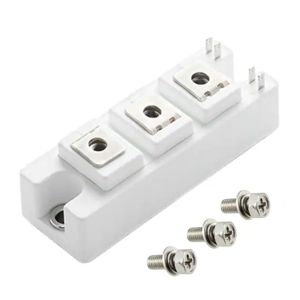

MG12105S-BA1MM
