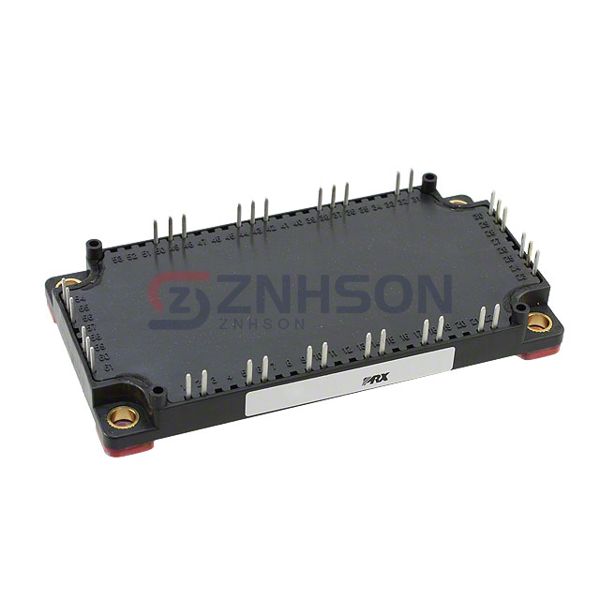

CM150TX-24S
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 150A 1150W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Powerex Inc.'s CM150TX-24S represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the CM150TX-24S in industrial servo drives or medium-voltage frequency converters. Trust Powerex Inc.'s expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 1150 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 150A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 15 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Vishay General Semiconductor - Diodes Division
CPV363M4K
Powerex Inc.
CM150DY-12NF
Powerex Inc.
CM600DY-24A
Littelfuse Inc.
MG1275W-XN2MM
IXYS
IXGN100N160A

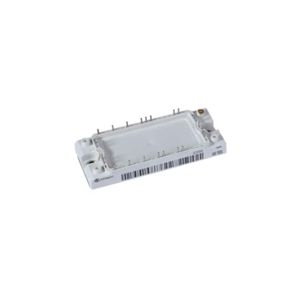

Infineon Technologies
F3L200R12N2H3B47BPSA1

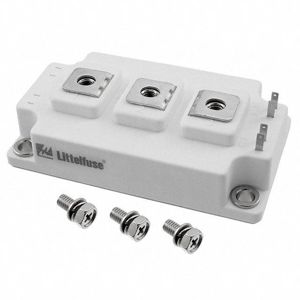

Littelfuse Inc.
MG06400D-BN4MM
Infineon Technologies
FS6R06VE3B2BOMA1

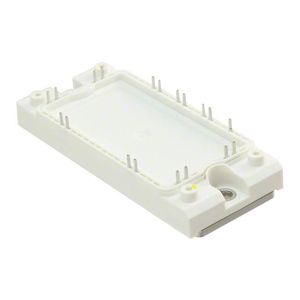

Infineon Technologies
