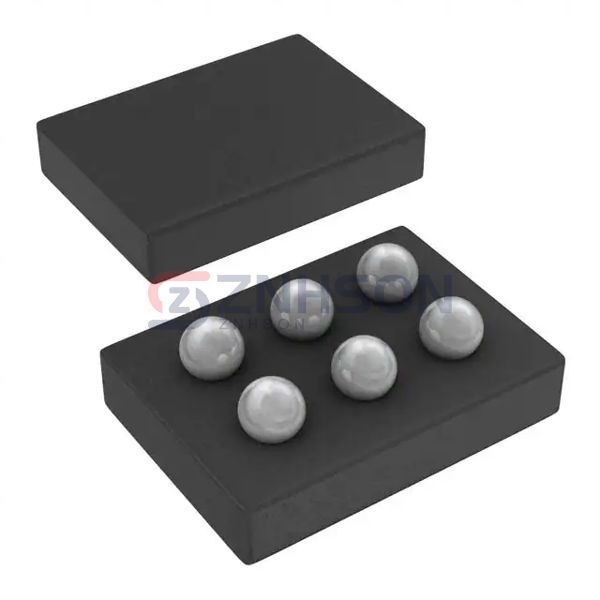

CSD13306W
Texas Instruments
Texas Instruments
MOSFET N-CH 12V 3.5A 6DSBGA
$0.56
Available to order
Reference Price (USD)
3,000+
$0.19040
6,000+
$0.17850
15,000+
$0.17255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD13306W from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD13306W offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 10.2mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1370 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 1.9W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
