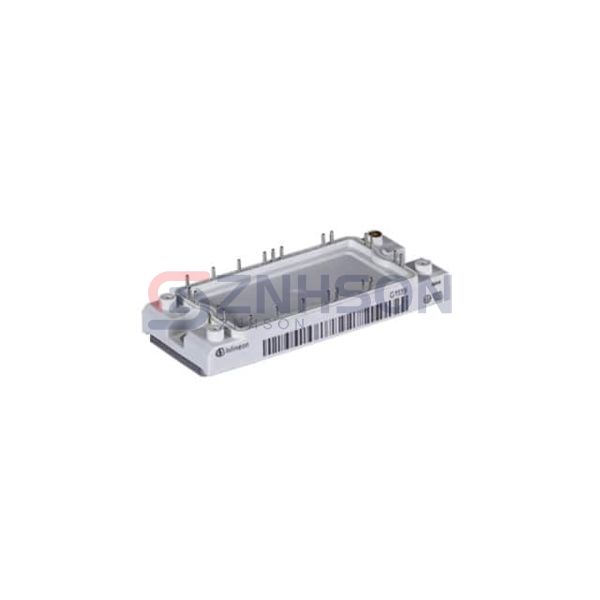

DDB6U100N16RRBOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 50A 350W
$0.00
Available to order
Reference Price (USD)
10+
$74.67500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDB6U100N16RRBOSA1 by Infineon Technologies redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the DDB6U100N16RRBOSA1 in high-efficiency servo controllers for manufacturing automation. Infineon Technologies combines innovation with quality in every DDB6U100N16RRBOSA1 module.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Single Chopper
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 50 A
- Power - Max: 350 W
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 20V, 50A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 3.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
