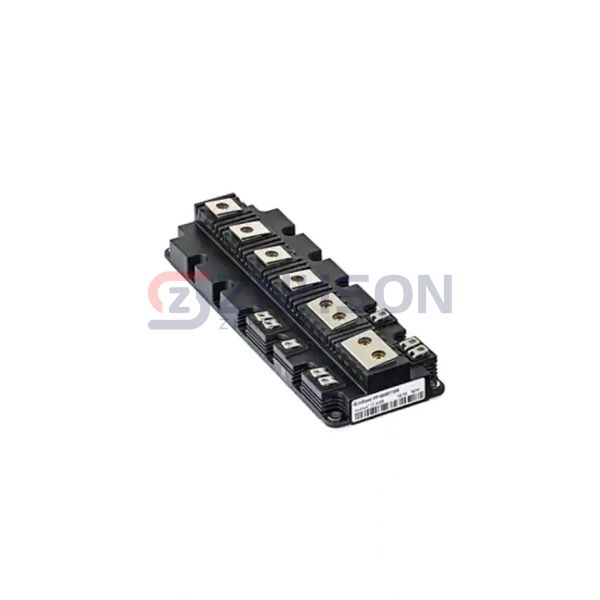

FF1500R17IP5BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1700V 1500A 20MW
$1,956.08
Available to order
Reference Price (USD)
2+
$1,077.37500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FF1500R17IP5BPSA1 by Infineon Technologies redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the FF1500R17IP5BPSA1 in high-efficiency servo controllers for manufacturing automation. Infineon Technologies combines innovation with quality in every FF1500R17IP5BPSA1 module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: 2 Independent
- Voltage - Collector Emitter Breakdown (Max): 1700 V
- Current - Collector (Ic) (Max): 1500 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 1500A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 88 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
