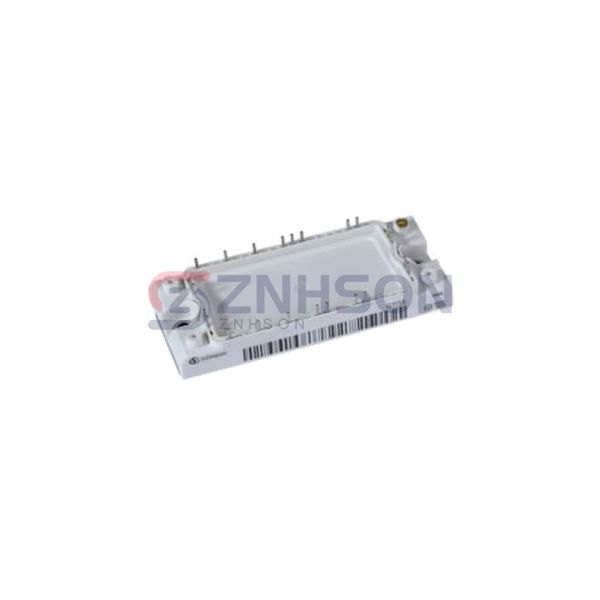

FS100R07N2E4B11BOSA1
Infineon Technologies

Infineon Technologies
IGBT MOD 650V 125A 20MW
$0.00
Available to order
Reference Price (USD)
30+
$88.89867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's FS100R07N2E4B11BOSA1 stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the FS100R07N2E4B11BOSA1 enables higher power density in MRI gradient amplifiers. Choose Infineon Technologies for IGBT modules that push performance boundaries.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 125 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 100A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 6.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
