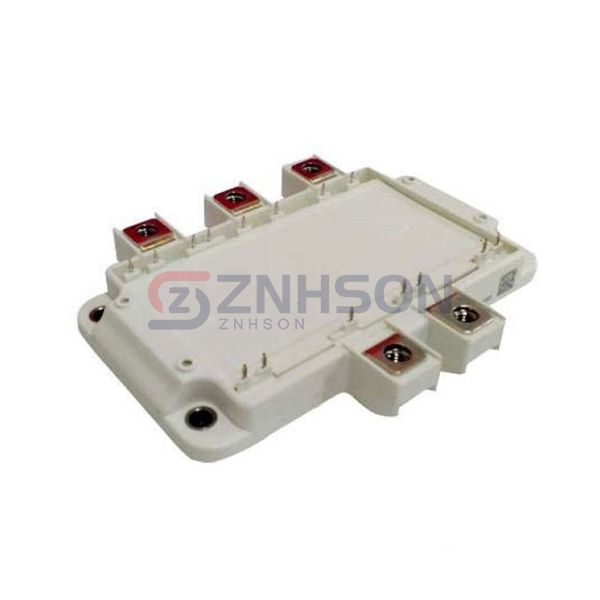

GSID300A120S5C1
SemiQ
SemiQ
IGBT MOD 1200V 430A 1630W
$0.00
Available to order
Reference Price (USD)
1+
$326.58000
10+
$310.81100
25+
$300.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GSID300A120S5C1 from SemiQ exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the GSID300A120S5C1 in megawatt-level wind turbine converters. With SemiQ's proven track record, the GSID300A120S5C1 represents the future of power semiconductor modules.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 430 A
- Power - Max: 1630 W
- Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 300A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 30 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Powerex Inc.
CM200DY-24A
Powerex Inc.
CM200DU-12NFH
Powerex Inc.
CM300DY-24H
Vishay General Semiconductor - Diodes Division
VS-GB70NA60UF
Microsemi Corporation
APT75GN120JDQ3G
Powerex Inc.
CM400DY-24A
Infineon Technologies
6MS24017P43W39872NOSA1
Infineon Technologies

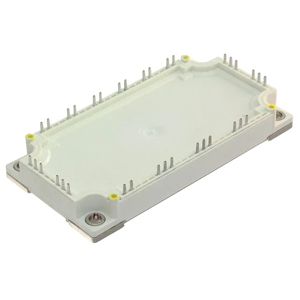

FS200R07A1E3BOSA1
Littelfuse Inc.

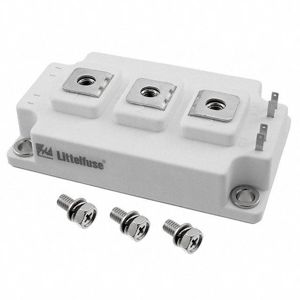

MG06300D-BN4MM
