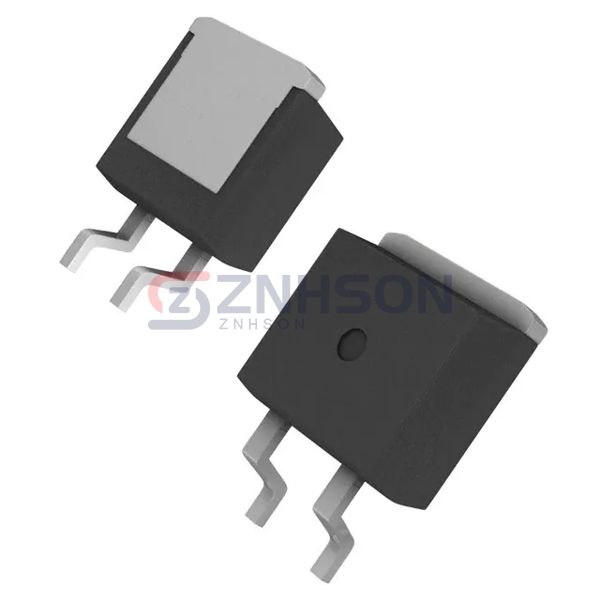

IXGA12N100
IXYS
IXYS
IGBT 1000V 24A 100W TO263AA
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGA12N100 Single IGBT transistor by IXYS is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the IXGA12N100 provides consistent performance in varied conditions. Rely on IXYS's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1000 V
- Current - Collector (Ic) (Max): 24 A
- Current - Collector Pulsed (Icm): 48 A
- Vce(on) (Max) @ Vge, Ic: 3.5V @ 15V, 12A
- Power - Max: 100 W
- Switching Energy: 2.5mJ (off)
- Input Type: Standard
- Gate Charge: 65 nC
- Td (on/off) @ 25°C: 100ns/850ns
- Test Condition: 800V, 12A, 120Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
Related Products
IXYS
IXGR40N60BD1
Infineon Technologies
IKW40N65H5AXKSA1
Fairchild Semiconductor
FGB40N60SM
Infineon Technologies
IRGS4630DTRRPBF
STMicroelectronics
STGD10NC60KT4
Infineon Technologies
IRG4PC60FPBF
Infineon Technologies
IRG4PSH71UDPBF
IXYS

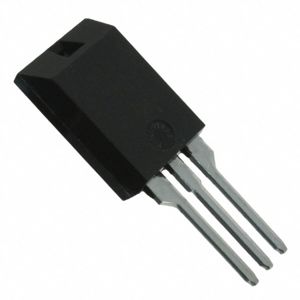

IXGC16N60C2
