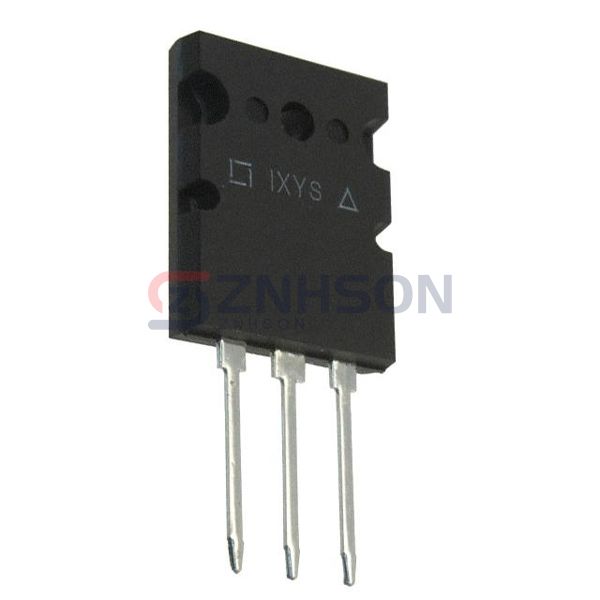

IXGB75N60BD1
IXYS
IXYS
IGBT 600V 120A 360W PLUS264
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IXGB75N60BD1 Single IGBT transistor by IXYS, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IXGB75N60BD1 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IXGB75N60BD1 for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 75A
- Power - Max: 360 W
- Switching Energy: 3.3mJ (off)
- Input Type: Standard
- Gate Charge: 248 nC
- Td (on/off) @ 25°C: 62ns/220ns
- Test Condition: 480V, 75A, 5Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: PLUS264™
