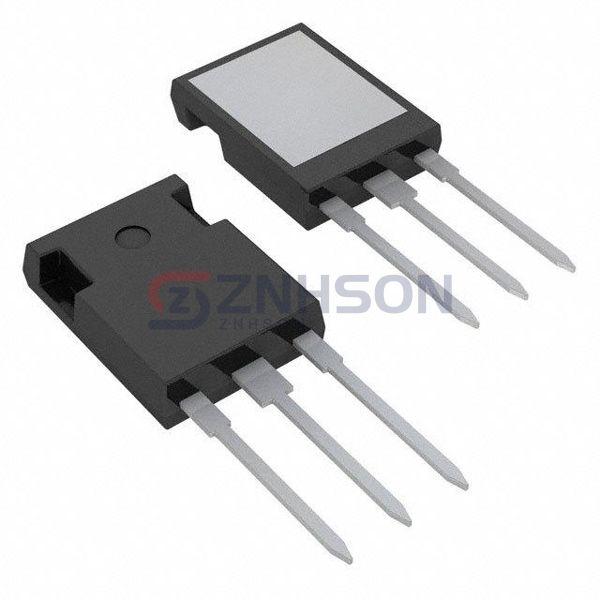

IXGR55N120A3H1
IXYS
IXYS
IGBT 1200V 70A 200W ISOPLUS247
$15.96
Available to order
Reference Price (USD)
30+
$14.18033
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGR55N120A3H1 by IXYS is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the IXGR55N120A3H1 delivers robust performance. IXYS's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate IXGR55N120A3H1 into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 70 A
- Current - Collector Pulsed (Icm): 330 A
- Vce(on) (Max) @ Vge, Ic: 2.35V @ 15V, 55A
- Power - Max: 200 W
- Switching Energy: 5.1mJ (on), 13.3mJ (off)
- Input Type: Standard
- Gate Charge: 185 nC
- Td (on/off) @ 25°C: 23ns/365ns
- Test Condition: 960V, 55A, 3Ohm, 15V
- Reverse Recovery Time (trr): 200 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: ISOPLUS247™
