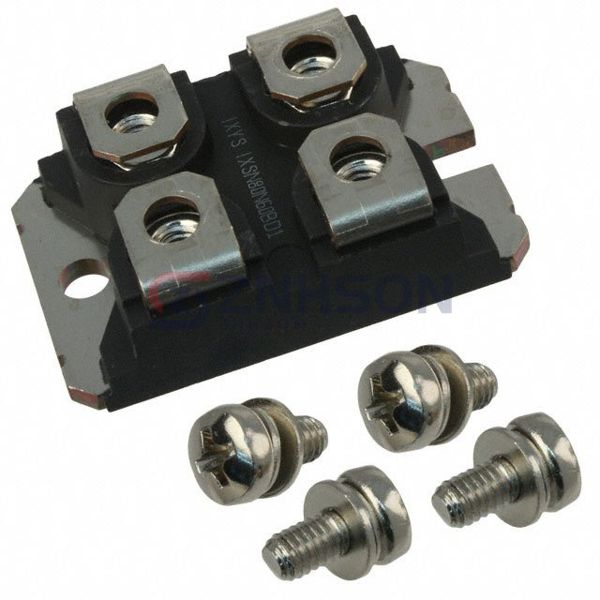

IXSN80N60BD1
IXYS
IXYS
IGBT MOD 600V 160A 420W SOT227B
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IXYS's IXSN80N60BD1 represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the IXSN80N60BD1 in industrial servo drives or medium-voltage frequency converters. Trust IXYS's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 160 A
- Power - Max: 420 W
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 80A
- Current - Collector Cutoff (Max): 200 µA
- Input Capacitance (Cies) @ Vce: 6.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227B
