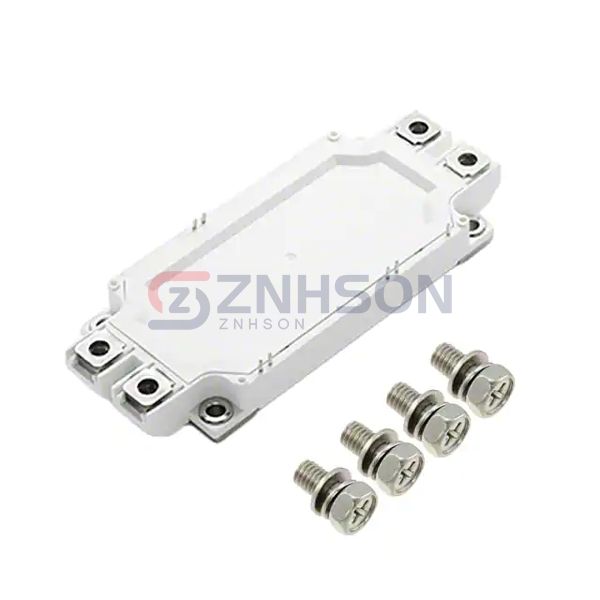

MG12225WB-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 325A 1050W WB
$0.00
Available to order
Reference Price (USD)
1+
$145.36000
10+
$136.60900
25+
$132.23080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Littelfuse Inc.'s MG12225WB-BN2MM sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the MG12225WB-BN2MM in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Littelfuse Inc. to deliver cutting-edge IGBT solutions with the MG12225WB-BN2MM power module.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 325 A
- Power - Max: 1050 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 225A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 16 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: WB
