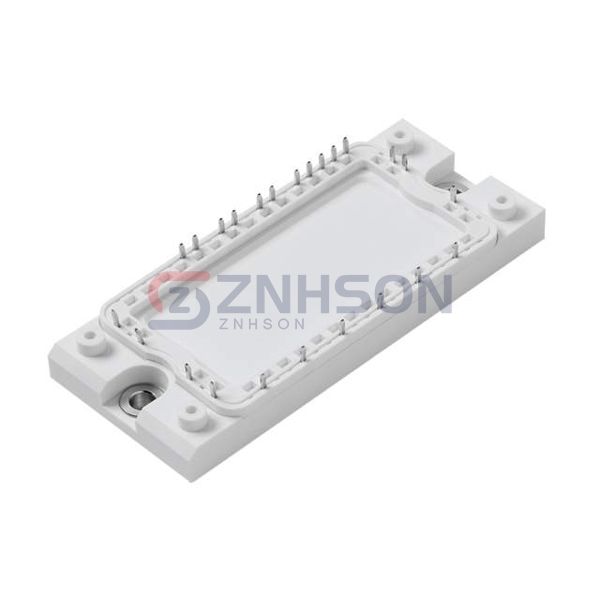

MG1225H-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 40A 147W
$0.00
Available to order
Reference Price (USD)
1+
$75.72000
10+
$71.46700
25+
$68.48960
100+
$65.08620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Littelfuse Inc.'s MG1225H-XN2MM, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The MG1225H-XN2MM performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Littelfuse Inc.'s MG1225H-XN2MM, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Power - Max: 147 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 25A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: 1.81 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
