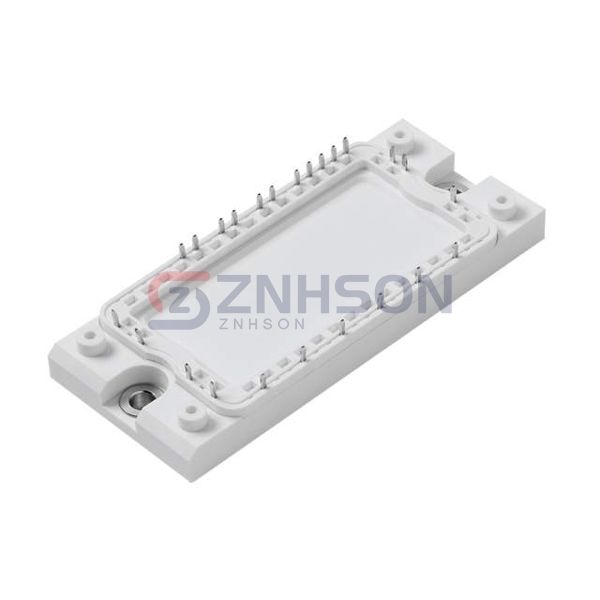

MG1275H-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 105A 348W
$0.00
Available to order
Reference Price (USD)
80+
$126.14550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the MG1275H-XN2MM IGBT module by Littelfuse Inc. sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The MG1275H-XN2MM finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Littelfuse Inc. continues to lead the IGBT module revolution with innovations like the MG1275H-XN2MM.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 105 A
- Power - Max: 348 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 5.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Infineon Technologies
FP50R06KE3BOSA1
Littelfuse Inc.
MG06100S-BR1MM
SemiQ
GSID100A120T2P2
IXYS
IXGN72N60A3
IXYS

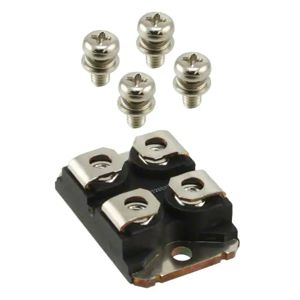

IXSN55N120A
Infineon Technologies

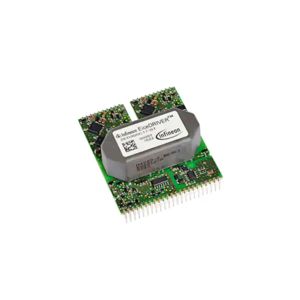

2PS13512E43W35222NOSA1
Microsemi Corporation

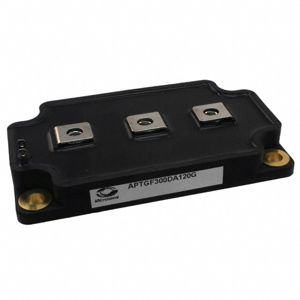

APTGF300DA120G
Microsemi Corporation

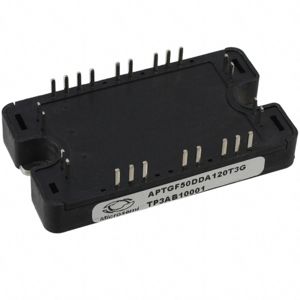

APTGF50DDA120T3G
Powerex Inc.

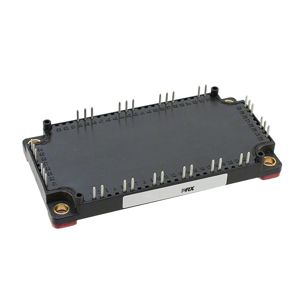

CM150TX-24S
