NGTB15N120IHLWG
onsemi
onsemi
IGBT 1200V 30A 156W TO247-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the NGTB15N120IHLWG Single IGBT transistor from onsemi. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the NGTB15N120IHLWG delivers consistent and reliable operation. Trust onsemi's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 15A
- Power - Max: 156 W
- Switching Energy: 560µJ (off)
- Input Type: Standard
- Gate Charge: 160 nC
- Td (on/off) @ 25°C: -/165ns
- Test Condition: 600V, 15A, 15Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Littelfuse Inc.
NGD15N41CLT4G
IXYS
IXGR72N60C3D1
Infineon Technologies
IKP20N60TA
IXYS
IXGH31N60
IXYS
IXGP20N120B
IXYS
IXSH45N100
IXYS
IXGT20N120BD1
Renesas Electronics America Inc
RJH60D3DPP-M0#T2
Fairchild Semiconductor

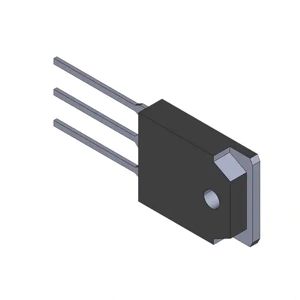

FGA40N60UFDTU
