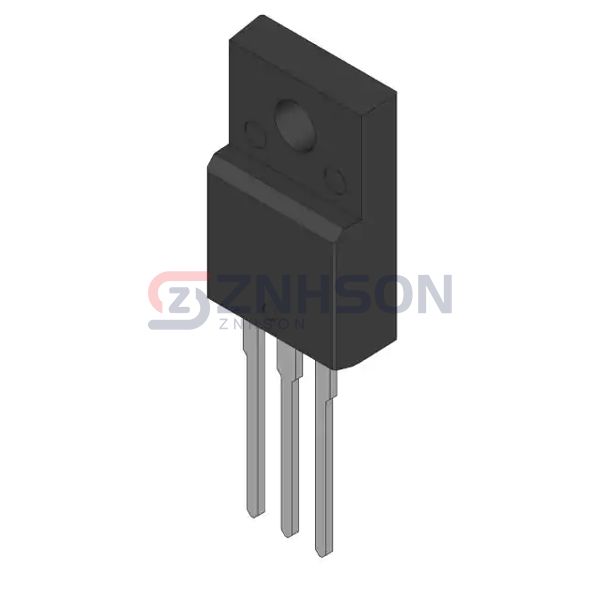

SGS23N60UFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 23A I(C), 600V V(BR)CES, N
$0.00
Available to order
Reference Price (USD)
1,000+
$1.23760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the SGS23N60UFDTU Single IGBT transistor from Fairchild Semiconductor. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the SGS23N60UFDTU ensures precision and reliability. Fairchild Semiconductor's cutting-edge technology guarantees a component that meets the highest industry standards. Choose SGS23N60UFDTU for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 23 A
- Current - Collector Pulsed (Icm): 92 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 12A
- Power - Max: 73 W
- Switching Energy: 115µJ (on), 135µJ (off)
- Input Type: Standard
- Gate Charge: 49 nC
- Td (on/off) @ 25°C: 17ns/60ns
- Test Condition: 300V, 12A, 23Ohm, 15V
- Reverse Recovery Time (trr): 60 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F
