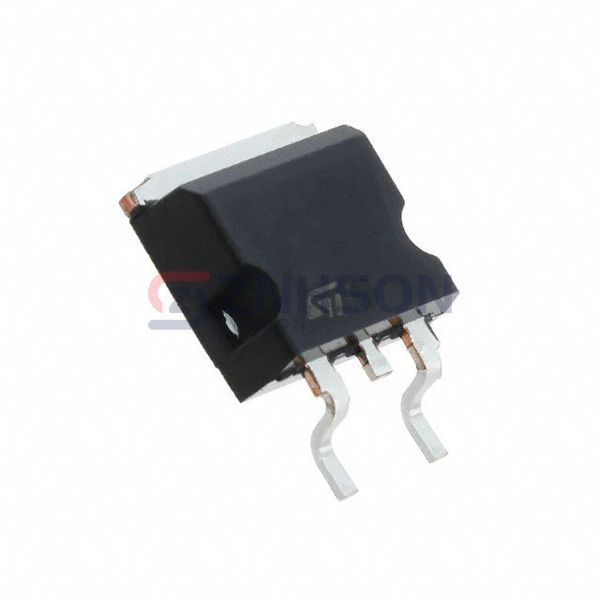

STGB20NC60VT4
STMicroelectronics
STMicroelectronics
IGBT 600V 60A 200W D2PAK
$0.00
Available to order
Reference Price (USD)
1,000+
$1.35959
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGB20NC60VT4 Single IGBT transistor by STMicroelectronics is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The STGB20NC60VT4 ensures precise power control and long-term stability. With STMicroelectronics's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate STGB20NC60VT4 into your projects for superior results.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 200 W
- Switching Energy: 220µJ (on), 330µJ (off)
- Input Type: Standard
- Gate Charge: 100 nC
- Td (on/off) @ 25°C: 31ns/100ns
- Test Condition: 390V, 20A, 3.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
