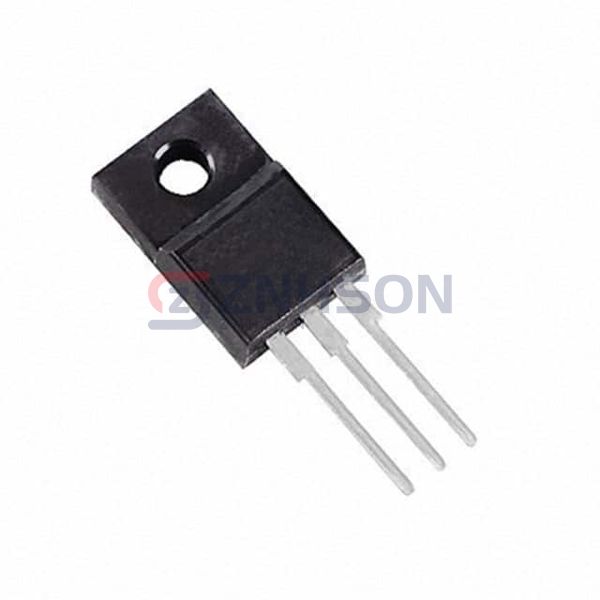

STGF4M65DF2
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP IGBT, M S
$1.29
Available to order
Reference Price (USD)
1+
$0.97000
10+
$0.87100
100+
$0.69040
500+
$0.57904
2,000+
$0.43990
6,000+
$0.42135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier performance with the STGF4M65DF2 Single IGBT transistor from STMicroelectronics. As a key player in Discrete Semiconductor Products, this IGBT offers excellent thermal management and high switching frequency. Perfect for applications like server power supplies, LED lighting, and telecommunications, the STGF4M65DF2 ensures energy efficiency and reliability. Trust STMicroelectronics's expertise to deliver a component that enhances your power electronics with superior functionality.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 8 A
- Current - Collector Pulsed (Icm): 16 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 4A
- Power - Max: 23 W
- Switching Energy: 40µJ (on), 136µJ (off)
- Input Type: Standard
- Gate Charge: 15.2 nC
- Td (on/off) @ 25°C: 12ns/86ns
- Test Condition: 400V, 4A, 47Ohm, 15V
- Reverse Recovery Time (trr): 133 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
Related Products
Microchip Technology
APT50GN120L2DQ2G
onsemi

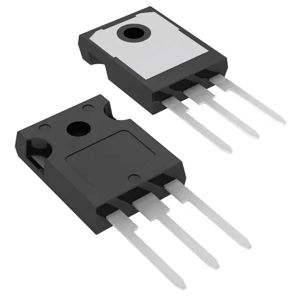

FGH60T65SQD-F155
Renesas Electronics America Inc

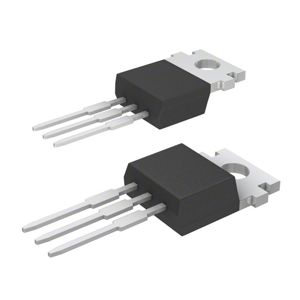

RJP6085DPN-00#T2
