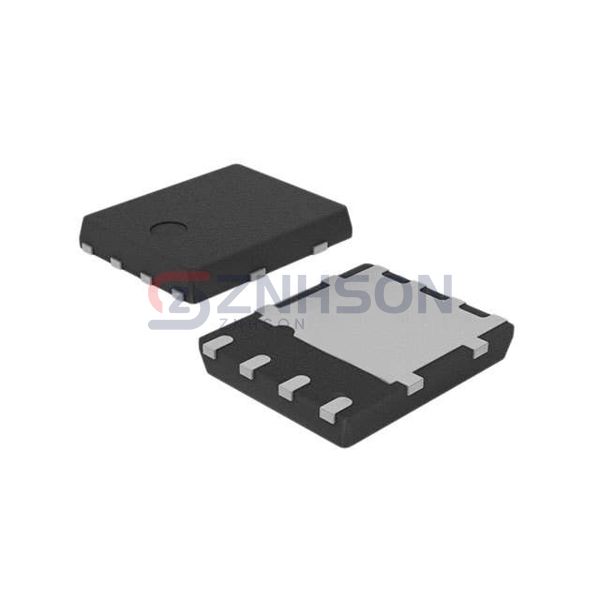

STL120N2VH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 20V 120A POWERFLAT
$2.55
Available to order
Reference Price (USD)
1+
$2.55000
500+
$2.5245
1000+
$2.499
1500+
$2.4735
2000+
$2.448
2500+
$2.4225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL120N2VH5 by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STL120N2VH5 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 3mOhm @ 14A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 2.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 4660 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 80W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
