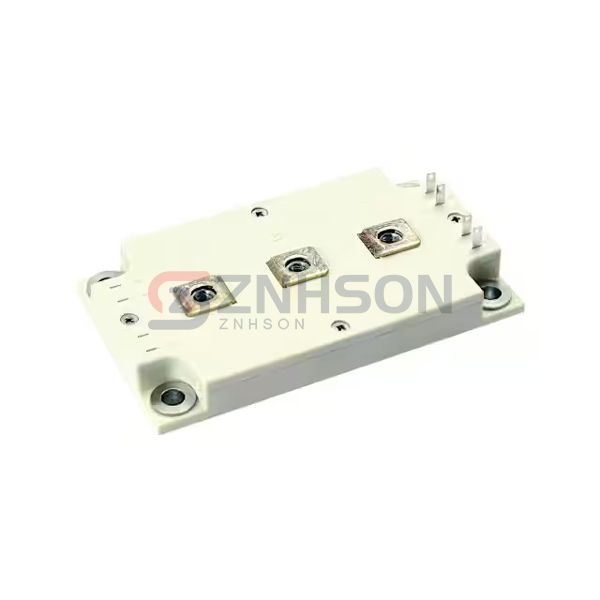

VS-GT300TD60S
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
IGBT MOD 600V 580A INT-A-PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-GT300TD60S by Vishay General Semiconductor - Diodes Division redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the VS-GT300TD60S in high-efficiency servo controllers for manufacturing automation. Vishay General Semiconductor - Diodes Division combines innovation with quality in every VS-GT300TD60S module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 466 A
- Power - Max: 882 W
- Vce(on) (Max) @ Vge, Ic: 1.47V @ 15V, 300A
- Current - Collector Cutoff (Max): 200 µA
- Input Capacitance (Cies) @ Vce: 24.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: INT-A-PAK
Related Products
Infineon Technologies
FS900R08A2P2B31BOSA1
Infineon Technologies
6MS30017E43W40372NOSA1
IXYS

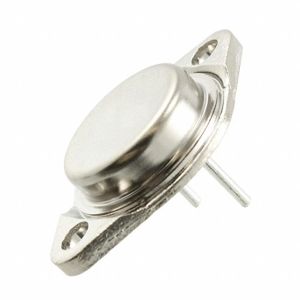

IXGM40N60A
Vishay General Semiconductor - Diodes Division
GA200SA60U
Vishay General Semiconductor - Diodes Division

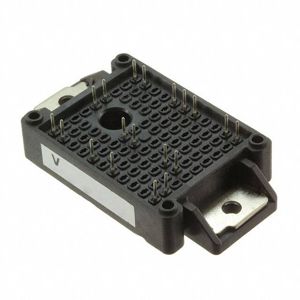

VS-ENQ030L120S
Powerex Inc.

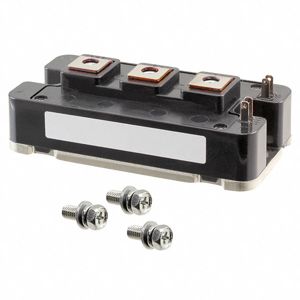

CM100DY-24A
Infineon Technologies

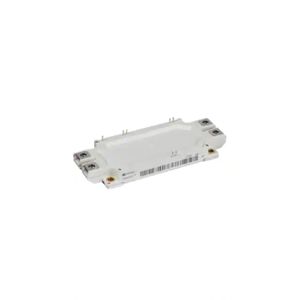

F4150R17ME4B11BPSA1
Infineon Technologies

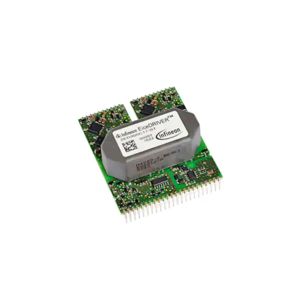

2PS12017E44G35911NOSA1
Littelfuse Inc.

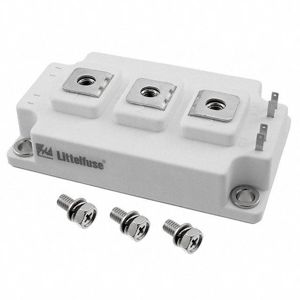

MG12100D-BA1MM
