Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
09031966919

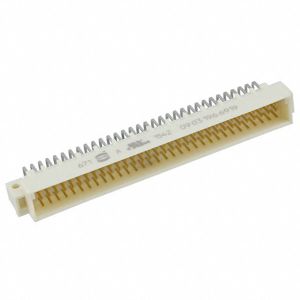

CONN DIN HDR 96POS PCB RA GOLD

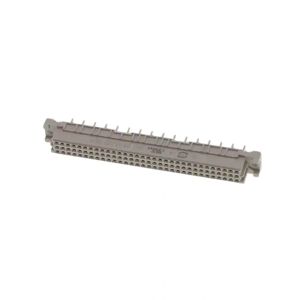

09032327825
CONN DIN RCPT 96POS PCB
09252306825

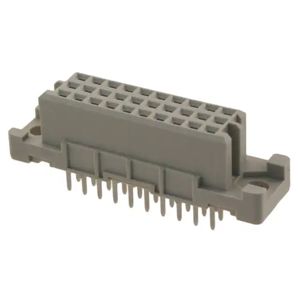

CONN DIN RCPT 30POS PCB

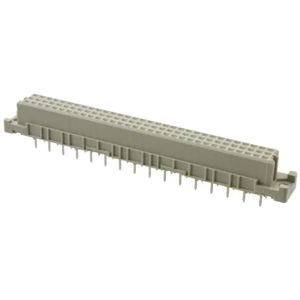

09032326825
CONN DIN RCPT 96POS PCB

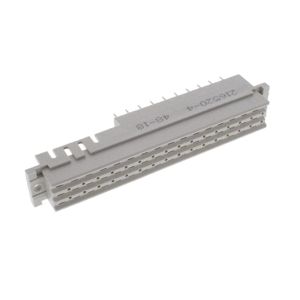

216520-4
CONN DIN RCPT 30POS PCB GOLD
5536412-4

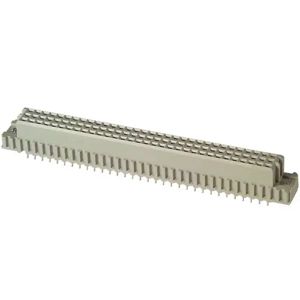

CONN DIN RCPT 96POS PCB GOLD

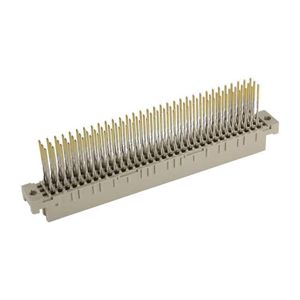

09032966411
CONN DIN RCPT 96POS PCB GOLD

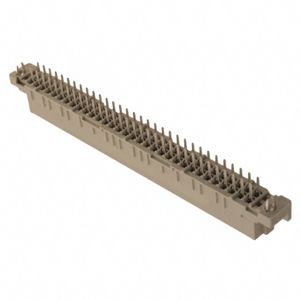

09024646825
CONN DIN RCPT 64POS PNL MNT
XC5F5022BYOMR

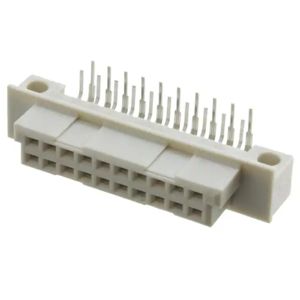

CONN DIN RCPT 50POS PCB RA GOLD

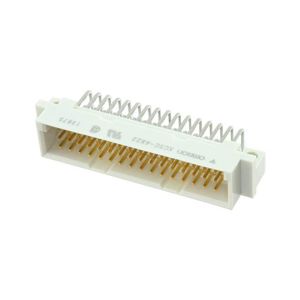

XC5C6422ABYOMR
CONN DIN PLUG 64POS PCB RA

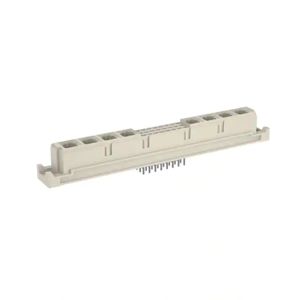

294711
DIN M 24POS F SLDR 4.0MM CL2

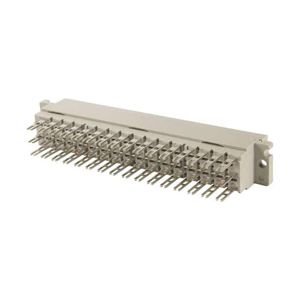

09062322843
CONN DIN RCPT 48POS GOLD

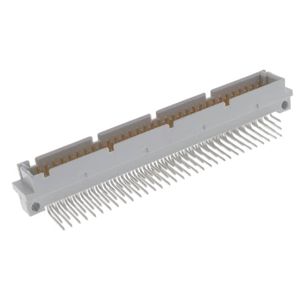

86093967123755E1LF
CONN DIN HDR 96POS PCB RA GOLD
09232486850

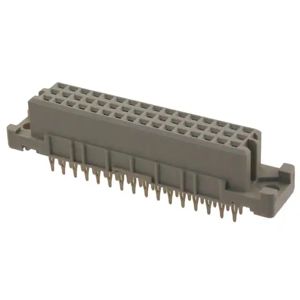

CONN DIN RCPT 48POS PCB
09032962850222

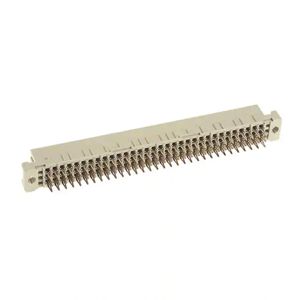

CONN DIN RCPT 96POS PCB GOLD

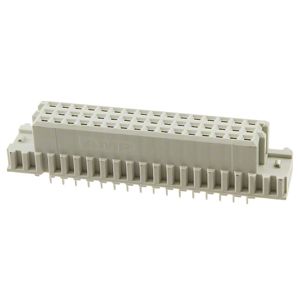

5536484-5
CONN DIN RCPT 48POS PCB GOLD

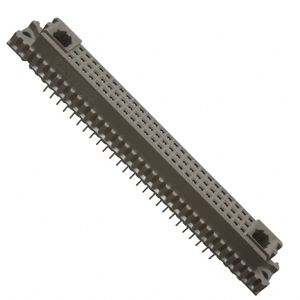

5148417-5
CONN DIN RCPT 80POS PCB GOLD

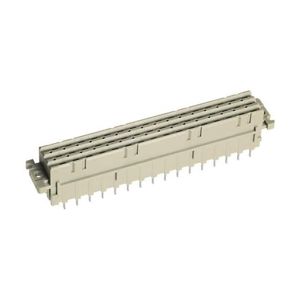

09062326848
CONN DIN RCPT 48POS PCB GOLD

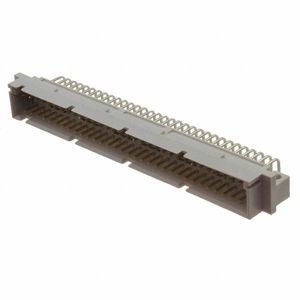

86094647113745ELF
CONN DIN HDR 96POS PCB RA GOLD

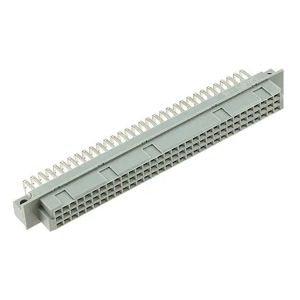

PCN10B-96S-2.54DS(72)
