Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
811-S1-016-10-017101
CONN SPRING PISTON 16POS PCB

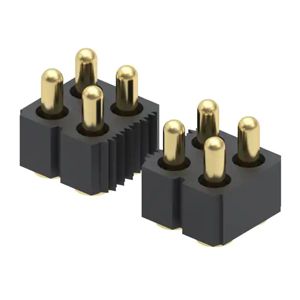

813-22-042-30-003101
CONN SPRING PISTON 42POS SMD

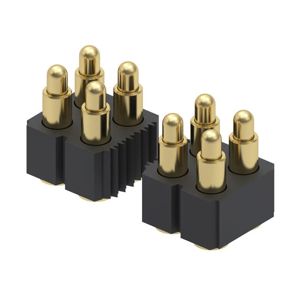

814-22-012-30-000101
CONN SPRING PISTON 12POS SMD

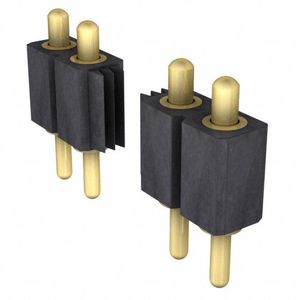

811-S1-010-10-014101
CONN SPRING PISTON 10POS PCB

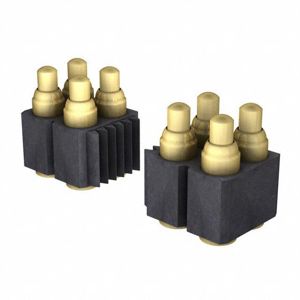

823-S1-020-30-015191
CONN SPRING PISTON 20POS SMD

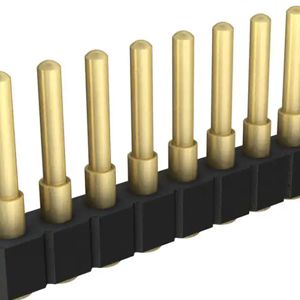

812-22-050-30-002101
CONN SPRING PISTON 50POS SMD
823-S1-014-30-013101
CONN SPRING PISTON 14POS SMD
813-S1-044-10-016101
CONN SPRING PISTON 44POS PCB

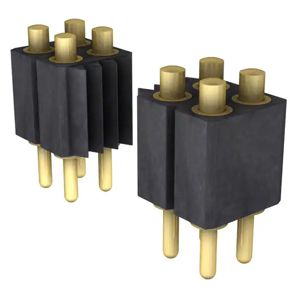

813-S1-070-10-016101
CONN SPRING PISTON 70POS PCB

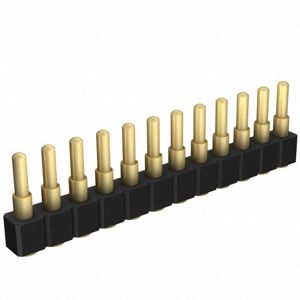

812-22-012-30-004101
CONN SPRING PISTON 12POS SMD

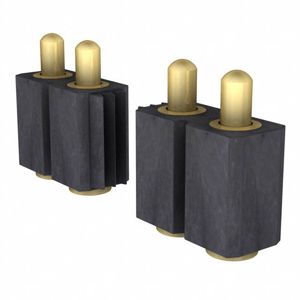

811-SS-008-30-008101
CONN SPRING PISTON 8POS SMD
813-S1-038-10-017101
CONN SPRING PISTON 38POS PCB
811-SS-005-30-025101
CONN SPRING PISTON 5POS SMD

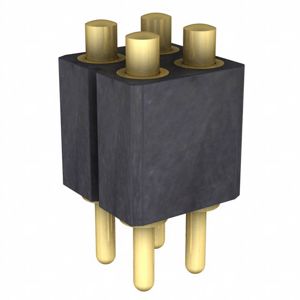

813-S1-004-10-015101
CONN SPRING PISTON 4POS PCB

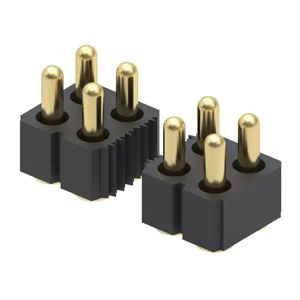

813-22-060-30-004101
CONN SPRING PISTON 60POS SMD

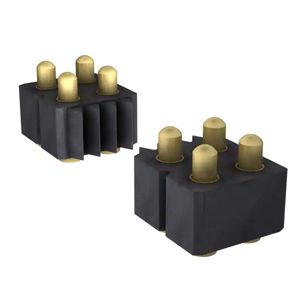

813-SS-016-30-003101
CONN SPRING PISTON 16POS SMD

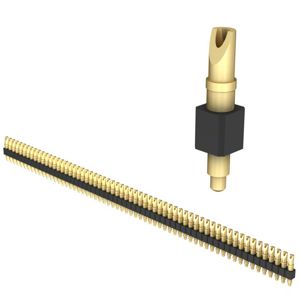

824-22-061-00-001000
CONN SPRING PISTON 61POS SLD PCB

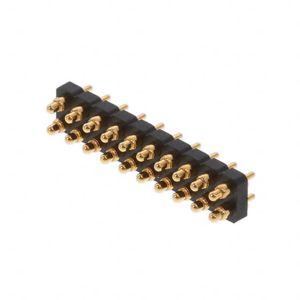

PH2-3B-20-MVP-3345
CONN SPRING PISTON 20POS PCB

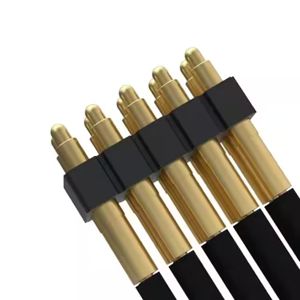

889-22-010-70-501010
WIRE TERMINATION SPRING-LOADED H
813-SS-008-30-007101
CONN SPRING PISTON 8POS SMD
